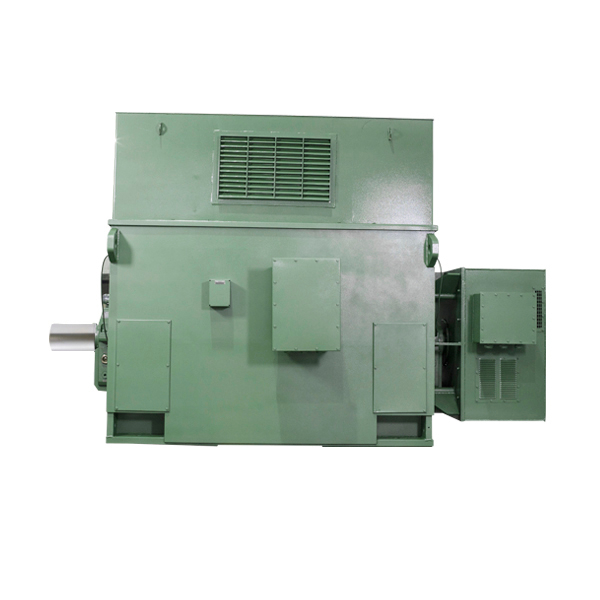

YR 绕线式异步电动机 概述
YR系列我公司采用国内外先进技术、结合我公司生产高压电动机的实践经验而建立的优化系列产品，是JR老系列高压电动机的更新换代产品。
本系列产品用料考究，制造精良，具有力能指标高，噪音及振动小，可靠性高，使用安装、维修方便等优点。
本系列电动机的功率等级、安装尺寸、电气性能均符合GB/T4772.1-2-1999《旋转电机尺寸和输出功率等级》、GB755-2000《旋转电机定额与性能》标准及JB/T7594-1994《YR系列高压三相异电动机 技术条件》标准，GB/T13957-2008《大型三相异步电动机基本系列技术条件》。
本系列电动机的各部分机械尺寸、公差符合国家标准GB/T1800-GB/T1804《极限与配合》和国际标准化委员会ISO标准。
本系列电动机的外壳防护等级根据GB/T4942.1-2001《旋转电机外壳防护分级(IP代码)》为P23和P44两种，如果用户要求其他防护等级如IP54或IP24等可另行协商。
本系列电动机的冷却方法根据GB/T1993-1993和IEC60034-5《旋转电机冷却方法》的标准为IC01，如果用户要求其他冷却方法可另外协商。
本系列电动机基本安装方法为卧式带底脚(IMB3)结构，符合GB/T997-2003和IEC80034-7《旋转电机结构及安装型式(IM代号)》的规定。
YR 绕线式异步电动机 结构说明
电动机采用箱式结构。机座用钢板焊成的箱型结构，重量轻，刚度好。机座两侧面及顶部均有防护罩及盖板，拆下防护罩或盖板后可以观察和触及电动机的内部， 便利电动机的维护和修理。
YR系列基本防护等级为IP23；将其防护罩及盖板拆去并在机座顶部及侧面安装不同的顶罩及盖板后，可以形成各种不同防护方式及冷却方式的电动机。
定子采用外装压结构。定子绕组采用F级少龄绝缘材料，端部有可靠的固定及绑扎， 并采用真空压力浸渍无溶剂漆工艺(VPI)处理，因此电动机的绝缘性能优良可靠， 机械强度好， 防潮性能强。
轴承有滚动轴承和滑动轴承两种形式， 按电动机功率大小及转速而定其基本形式的防护等级为IP44， 如电动机具有较高的防护等级时，轴承的防护等级也随之提高。
电动机有一个圆柱型轴伸，机座号355-500采用平键联结，机座号560-630采用切向键联结，也可根据用户需要制造。
主出线盒为IP54防护等级，一般装于电动机右侧(面对电机轴伸端看)。也可按订货要求装于电动机左侧，主出线盒内、外均有单独的接地端子。
YR 绕线式异步电动机 用途
电动机可用于驱动各种通用机械如压缩机、水泵、破碎机、切削机床、运输机械极其他机械设备、在矿山、机械、冶金、石油、化工、电站等各种工矿企业中作原动机用，用以传动鼓风机、磨煤机、轧钢机、卷扬机的电动机应在订货时提供有关的技术资料，并要签定技术协议，作为电机特殊设计的依据， 以确保电动机的可靠运行。
YR 绕线式异步电动机 技术数据
YR系列6kV三相异步电动机技术数据(保证值)见表1
| 型号 | 额定功率(kW) | 定子电流 (A) | 额定 转速 (r/min) | 效率 (%) | 功率 因数 cosφ | 量大转矩额定转矩 Mmax/Min | 转子电压U2(V) | 转子电流l2(A) | 转动惯量J电机 kg. m² | 重量 (kg) |
| YR355-4 | 220 | 27.5 | 1470 | 92.7 | 0.83 | 1.8 | 314 | 437.8 | 7.7 | 2420 |
| YR355-4 | 250 | 30.8 | 1471 | 93.0 | 0.84 | 1.8 | 342 | 455.2 | 8.8 | 2519 |
| YR355-4 | 280 | 34.5 | 1472 | 93.1 | 0.84 | 1.8 | 376 | 461.8 | 9.9 | 2607 |
| YR400-4 | 315 | 38.3 | 1473 | 93.2 | 0.85 | 1.8 | 376 | 519 | 12.1 | 2893 |
| YR400-4 | 355 | 43.1 | 1474 | 93.3 | 0.85 | 1.8 | 418 | 524 | 13.2 | 2981 |
| YR400-4 | 400 | 48.4 | 1473 | 93.5 | 0.85 | 1.8 | 438 | 565 | 14.3 | 3069 |
| YR400-4 | 450 | 54.4 | 1475 | 93.7 | 0.85 | 1.8 | 493 | 562 | 15.4 | 3201 |
| YR400-4 | 500 | 60.3 | 1476 | 93.9 | 0.85 | 1.8 | 537 | 572 | 16.5 | 3278 |
| YR450-4 | 560 | 67.3 | 1482 | 94.2 | 0.85 | 1.8 | 672 | 530 | 18.7 | 3993 |
| YR450-4 | 630 | 74.6 | 1480 | 94.5 | 0.86 | 1.8 | 667 | 582.3 | 20.9 | 4136 |
| YR450-4 | 710 | 84.0 | 1481 | 94.6 | 0.86 | 1.8 | 759 | 596 | 22.0 | 4246 |
| YR450-4 | 800 | 93.4 | 1482 | 94.7 | 0.87 | 1.8 | 914 | 534 | 23.1 | 4422 |
| YR500-4 | 900 | 105.0 | 1482 | 94.8 | 0.87 | 1.8 | 794 | 694 | 30.8 | 4851 |
| YR500-4 | 1000 | 116.6 | 1484 | 94.9 | 0.87 | 1.8 | 894 | 682 | 33.0 | 4994 |
| YR500-4 | 1120 | 130.4 | 1486 | 95.0 | 0.87 | 1.8 | 1022 | 666 | 35.2 | 5181 |
| YR500-4 | 1250 | 145.4 | 1484 | 95.1 | 0.87 | 1.8 | 1052 | 723 | 37.4 | 5357 |
| YR560-4 | 1400 | 162.7 | 1484 | 95.2 | 0.87 | 1.8 | 1050 | 810 | 62.7 | 7007 |
| YR560-4 | 1600 | 185.7 | 484 | 95.3 | 0.87 | 1.8 | 1130 | 862 | 66.0 | 7106 |
| YR560-4 | 1800 | 208.7 | 1484 | 95.4 | 0.87 | 1.8 | 1225 | 894 | 71.5 | 7414 |
| YR630-4 | 2000 | 231.6 | 1486 | 95.5 | 0.87 | 1.8 | 1379 | 904 | 99.0 | 8987 |
| YR630-4 | 2240 | 259.2 | 1487 | 95.6 | 0.87 | 1.8 | 1517 | 918 | 106.7 | 9427 |
| YR630-4 | 2500 | 288.9 | 1487 | 95.7 | 0.87 | 1.8 | 1643 | 948 | 113.3 | 9867 |
| YR400-6 | 220 | 28.3 | 979 | 92.5 | 0.81 | 1.8 | 416 | 328 | 15.4 | 2871 |
| YR400-6 | 250 | 31.6 | 980 | 92.7 | 0.82 | 1.8 | 468 | 330 | 16.5 | 2970 |
| YR400-6 | 280 | 35.4 | 979 | 92.8 | 0.82 | 1.8 | 468 | 374 | 17.6 | 3069 |
| YR400-6 | 315 | 39.7 | 982 | 93.0 | 0.82 | 1.8 | 561 | 346 | 19.8 | 3190 |
| YR400-6 | 355 | 44.7 | 982 | 93.2 | 0.82 | 1.8 | 624 | 350 | 20.9 | 3289 |
| YR450-6 | 400 | 49.6 | 985 | 93.5 | 0.83 | 1.8 | 694 | 354 | 27.5 | 3938 |
| YR450-6 | 450 | 55.1 | 983 | 93.6 | 0.84 | 1.8 | 714 | 388 | 29.7 | 4059 |
| YR450-6 | 500 | 61.1 | 984 | 93.8 | 0.84 | 1.8 | 792 | 387 | 30.8 | 4290 |
| YR450-6 | 560 | 68.2 | 986 | 94.0 | 0.84 | 1.8 | 891 | 384 | 33.0 | 4345 |
| YR500-6 | 630 | 75.6 | 984 | 94.3 | 0.85 | 1.8 | 682 | 573 | 45.1 | 4565 |
| YR500-6 | 710 | 85.1 | 985 | 94.5 | 0.85 | 1.8 | 748 | 587 | 47.3 | 4708 |
| YR500-6 | 800 | 95.6 | 986 | 94.7 | 0.85 | 1.8 | 830 | 591 | 52.8 | 4873 |
| YR500-6 | 900 | 107.5 | 985 | 94.8 | 0.85 | 1.8 | 896 | 621 | 56.1 | 5038 |
| YR560-6 | 1000 | 119.2 | 986 | 95.0 | 0.85 | 1.8 | 912 | 701 | 69.3 | 6380 |
| YR560-6 | 1120 | 133.3 | 987 | 95.1 | 0.85 | 1.8 | 1020 | 696 | 77.0 | 6666 |
| YR560-6 | 1250 | 148.6 | 987 | 95.2 | 0.85 | 1.8 | 1118 | 712 | 81.4 | 6853 |
| YR630-6 | 1400 | 166.3 | 988 | 95.3 | 0.85 | 1.8 | 836 | 1072 | 114.4 | 7788 |
| YR630-6 | 1600 | 189.9 | 989 | 95.4 | 0.85 | 1.8 | 920 | 1114 | 117.7 | 8063 |
| YR630-6 | 1800 | 213.4 | 989 | 95.5 | 0.85 | 1.8 | 1022 | 1126 | 133.1 | 8338 |
| YR400-8 | 220 | 29.4 | 734 | 92.2 | 0.78 | 1.8 | 568 | 237 | 22.0 | 2860 |
| YR400-8 | 250 | 33.4 | 733 | 923.0 | 0.78 | 1.8 | 567 | 270 | 23.1 | 2959 |
| YR400-8 | 280 | 36.9 | 732 | 92.5 | 0.79 | 1.8 | 012 | 282 | 24.2 | 3025 |
| YR450-8 | 315 | 40.9 | 733 | 92.6 | 0.80 | 1.8 | 572 | 341 | 29.7 | 3751 |
| YR450-8 | 355 | 46.1 | 733 | 92.7 | 0.80 | 1.8 | 620 | 354 | 31.9 | 3072 |
| YR450-8 | 400 | 51.1 | 732 | 93.0 | 0.80 | 1.8 | 677 | 365 | 34.1 | 3960 |
| YR450-8 | 450 | 57.4 | 734 | 93.2 | 0.81 | 1.8 | 737 | 375 | 37.4 | 4103 |
| YR500-8 | 500 | 63.5 | 737 | 93.5 | 0.81 | 1.8 | 706 | 431 | 47.3 | 4565 |
| YR500-8 | 560 | 71.1 | 737 | 93.7 | 0.81 | 1.8 | 777 | 444 | 49.5 | 4686 |
| YR500-8 | 630 | 79.7 | 738 | 93.9 | 0.81 | 1.8 | 863 | 449 | 55.0 | 4862 |
| YR500-8 | 710 | 89.7 | 737 | 94.0 | 0.81 | 1.8 | 927 | 473 | 58.3 | 5027 |
| YR560-8 | 800 | 100.9 | 738 | 94.2 | 0.81 | 1.8 | 929 | 529 | 88.0 | 6118 |
| YR560-8 | 900 | 113.4 | 739 | 94.3 | 0.81 | 18.0 | 1068 | 519 | 96.8 | 6358 |
| YR560-8 | 1000 | 125.8 | 738 | 94.4 | 0.81 | 1.8 | 1151 | 536 | 103.4 | 6600 |
| YR630-8 | 1120 | 140.8 | 741 | 94.5 | 0.81 | 1.8 | 1149 | 596 | 136.4 | 7799 |
| YR630-8 | 1250 | 157.0 | 741 | 14.6 | 0.81 | 1.8 | 1245 | 614 | 143.0 | 3140 |
| YR630-8 | 1400 | 175.6 | 741 | 94.7 | 0.81 | 1.8 | 1358 | 531 | 156.2 | 8481 |
| YR450-10 | 220 | 30.1 | 584 | 91.3 | 0.77 | 1.8 | 563 | 242 | 29.7 | 3641 |
| YR450-10 | 250 | 34.5 | 584 | 91.5 | 0.77 | 1.8 | 610 | 254 | 33.0 | 3751 |
| YR450-10 | 280 | 37.6 | 584 | 91.8 | 0.78 | 1.8 | 664 | 261 | 35.2 | 3751 |
| YR450-10 | 315 | 42.3 | 584 | 91.9 | 0.78 | 1.8 | 732 | 266 | 38.5 | 3949 |
| YR450-10 | 355 | 47.6 | 585 | 92.1 | 0.78 | 1.8 | 813 | 270 | 40.7 | 4092 |
| YR500-10 | 400 | 53.2 | 588 | 92.8 | 0.78 | 1.8 | 732 | 337 | 55.0 | 4521 |
| YR500-10 | 450 | 59.6 | 588 | 93.1 | 0.78 | 1.8 | 700 | 503 | 57.2 | 4642 |
| YR500-10 | 500 | 65.3 | 588 | 93.3 | 0.79 | 1.8 | 855 | 362 | 83.8 | 4829 |
| YR500-10 | 560 | 73.0 | 588 | 93.5 | 0.79 | 1.8 | 918 | 379 | 68.2 | 4994 |
| YR560-10 | 630 | 81.0 | 589 | 93.6 | 0.80 | 1.8 | 979 | 424 | 94.6 | 6127 |
| YR560-10 | 710 | 91.1 | 590 | 93.7 | 0.80 | 1.8 | 1058 | 417 | 104.5 | 6358 |
| YR560-10 | 800 | 102.6 | 590 | 93.8 | 0.80 | 1.8 | 1204 | 437 | 111.1 | 6578 |
| YR630-10 | 900 | 115.3 | 591 | 93.9 | 0.80 | 1.8 | 1143 | 483 | 151.8 | 7799 |
| YR630-10 | 1000 | 127.8 | 591 | 94.1 | 0.80 | 1.8 | 1239 | 490 | 161.7 | 8140 |
| YR630-10 | 1120 | 143.0 | 591 | 94.2 | 0.80 | 1.8 | 1351 | 509 | 177.1 | 8481 |
| YR450-12 | 220 | 32.5 | 455 | 90.4 | 0.72 | 1.8 | 498 | 274 | 41.8 | 3938 |
| YR450-12 | 250 | 36.5 | 489 | 91.5 | 0.72 | 1.8 | 568 | 271 | 46.2 | 4081 |
| YR500-12 | 280 | 40.3 | 487 | 94.7 | 0.73 | 1.8 | 519 | 350 | 51.7 | 4345 |
| YR500-12 | 315 | 44.5 | 487 | 92.0 | 0.74 | 1.8 | 593 | 342 | 55 | 4477 |
| YR500-12 | 355 | 49.5 | 487 | 92.1 | 0.75 | 1.8 | 692 | 327 | 60.5 | 4631 |
| YR500-12 | 400 | 55.6 | 488 | 92.3 | 0.75 | 1.8 | 692 | 375 | 66 | 4785 |
| YR560-12 | 450 | 60.8 | 487 | 92.6 | 0.77 | 1.8 | 822 | 345 | 102.3 | 5918 |
| YR560-12 | 500 | 67.4 | 489 | 927.0 | 0.77 | 1.8 | 923 | 337 | 107.8 | 0094 |
| YR560-12 | 560 | 75.4 | 490 | 92.8 | 0.77 | 1.8 | 1057 | 329 | 115.6 | 6303 |
| YR560-12 | 630 | 84.7 | 491 | 92.9 | 0.77 | 1.8 | 1233 | 314 | 132 | 6512 |
| YR630-12 | 710 | 95.4 | 491 | 93.0 | 0.77 | 1.8 | 1204 | 383 | 174 | 7711 |
| YR630-12 | 800 | 107.4 | 491 | 93.1 | 0.77 | 1.8 | 1305 | 399 | 185.9 | 8041 |
| YR630-12 | 900 | 120.7 | 491 | 93.2 | 0.77 | 1.8 | 1423 | 412 | 203.5 | 8371 |
| 型号 | 额定功率kW | 额定电流 A | 额定负载下 | 同步转速 r/min | 最大转矩 额定转矩(标准值) | 重量 kg | |
| 效 率% | 功率因素COSφ | ||||||
| YR710-4 | 2800 | 324 | 95.8 | 0.87 | 1500 | 1.8 | 11500 |
| YR710-4 | 3150 | 364 | 95.9 | 0.87 | 1500 | 1.8 | 12000 |
| YR710-4 | 3550 | 409 | 96.0 | 0.87 | 1500 | 1.8 | 12500 |
| YR710-4 | 4000 | 461 | 96.1 | 0.87 | 1500 | 1.8 | 13000 |
| YR800-4 | 4500 | 518 | 96.2 | 0.87 | 1500 | 1.8 | 14500 |
| YR800-4 | 5000 | 575 | 98.3 | 0.87 | 1500 | 1.8 | 15200 |
| YR800-4 | 5600 | 666 | 96.4 | 0.87 | 1500 | 1.8 | 16000 |
| YR710-6 | 2000 | 237 | 95.5 | 0.85 | 1000 | 1.8 | 11500 |
| YR710-6 | 2240 | 200 | 95.6 | 0.85 | 1000 | 1.8 | 10000 |
| YR710-6 | 2500 | 296 | 95.7 | 0.85 | 1000 | 1.8 | 12500 |
| YR710-6 | 2800 | 332 | 95.7 | 0.85 | 1000 | 1.8 | 13000 |
| YR800-6 | 3150 | 373 | 95.8 | 0.85 | 1000 | 1.8 | 14500 |
| YR800-6 | 3550 | 420 | 95.9 | 0.85 | 1000 | 1.8 | 15000 |
| YR800-6 | 4000 | 472 | 96.0 | 0.85 | 1000 | 1.8 | 15500 |
| YR800-6 | 4500 | 531 | 96.1 | 0.85 | 1000 | 1.8 | 16000 |
| YR710-8 | 1800 | 220 | 95.0 | 0.83 | 750 | 1.8 | 11500 |
| YR710-8 | 2000 | 244 | 95.1 | 0.83 | 750 | 1.8 | 12000 |
| YR710-8 | 2240 | 273 | 95.2 | 0.83 | 750 | 1.8 | 10000 |
| YR800-8 | 2500 | 305 | 95.3 | 0.83 | 750 | 1.8 | 14500 |
| YR800-8 | 2800 | 341 | 95.4 | 0.83 | 750 | 1.8 | 15200 |
| YR800-8 | 3150 | 378 | 95.5 | 0.84 | 750 | 1.8 | 16000 |
| YR900-8 | 3550 | 426 | 95.6 | 0.84 | 750 | 1.8 | 17500 |
| YR900-8 | 4000 | 479 | 95.7 | 0.84 | 750 | 1.8 | 18000 |
| YR900-8 | 4500 | 539 | 95.5 | 0.54 | 750 | 1.8 | 15000 |
| YR710-10 | 1400 | 177 | 94.4 | 0.81 | 600 | 1.8 | 12000 |
| YR710-10 | 1600 | 202 | 94.5 | 0.81 | 600 | 1.8 | 12500 |
| YR710-10 | 1800 | 227 | 94.6 | 0.81 | 500 | 1.8 | 13000 |
| YR800-10 | 2000 | 251 | 94.7 | 0.81 | 600 | 1.8 | 14500 |
| 800-10 | 2240 | 281 | 94.8 | 0.81 | 600 | 1.8 | 15200 |
| 800-10 | 2500 | 313 | 94.9 | 0.81 | 600 | 1.8 | 16000 |
| 900-10 | 2800 | 346 | 95.0 | 0.82 | 600 | 1.8 | 17500 |
| 900-10 | 3150 | 389 | 95.1 | 0.82 | 800 | 1.8 | 18000 |
| 900-10 | 3550 | 438 | 95.2 | 0.82 | 600 | 1.8 | 18500 |
| 900-10 | 4000 | 493 | 95.3 | 0.82 | 600 | 1.8 | 19000 |
| 1000-10 | 4500 | 554 | 95.4 | 0.82 | 600 | 1.8 | 24000 |
| 1000-10 | 5000 | 615 | 95.5 | 0.82 | 600 | 1.8 | 25000 |
| 1000-10 | 5600 | 688 | 95.6 | 0.82 | 200 | 1.8 | 26000 |
| 710-12 | 1120 | 148 | 03.8 | 0.78 | 500 | 1.8 | 12000 |
| 710-12 | 1250 | 165 | 93.9 | 0.78 | 500 | 1.8 | 13000 |
| 710-12 | 1400 | 184 | 94.0 | 0.78 | 500 | 1.8 | 13500 |
| 800-12 | 1600 | 210 | 94.1 | 0.78 | 500 | 1.8 | 14500 |
| 800-12 | 1800 | 236 | 94.2 | 0.78 | 500 | 1.8 | 15000 |
| 800-12 | 2000 | 262 | 94.3 | 0.78 | 500 | 1.8 | 15500 |
| 800-12 | 2240 | 293 | 94.4 | 0.78 | 500 | 1.8 | 16000 |
| 900-12 | 2500 | 323 | 94.5 | 0.79 | 500 | 1.8 | 17500 |
| 900-12 | 2800 | 361 | 94.6 | 0.79 | 500 | 1.8 | 18000 |
| 900-12 | 3150 | 406 | 94.7 | 0.79 | 500 | 1.8 | 19000 |
| 1000-12 | 3550 | 457 | 94.8 | 0.79 | 500 | 1.8 | 23000 |
| 1000-12 | 4000 | 514 | 94.9 | 0.79 | 500 | 1.8 | 24000 |
| 1000-12 | 4500 | 577 | 95.0 | 0.79 | 500 | 1.8 | 25000 |
| 1000-12 | 5000 | 641 | 95.1 | 0.79 | 500 | 1.8 | 26000 |
| 710-16 | 030 | 92 | 92.3 | 0.72 | 375 | 1.8 | 10500 |
| 710-16 | 710 | 103 | 92.6 | 0.72 | 375 | 1.8 | 11000 |
| 710-16 | 800 | 116 | 92.7 | 0.72 | 375 | 1.8 | 11500 |
| 710-16 | 900 | 130 | 92.8 | 0.72 | 375 | 1.8 | 12000 |
| 800-16 | 1000 | 144 | 92.9 | 0.72 | 375 | 1.8 | 14500 |
| 800-16 | 1120 | 161 | 93.0 | 0.72 | 375 | 1.8 | 15000 |
| 800-16 | 1250 | 180 | 93.1 | 0.72 | 375 | 1.8 | 15500 |
| 800-16 | 1400 | 201 | 93.2 | 0.72 | 375 | 1.8 | 16000 |
| 900-16 | 1600 | 223 | 93.3 | 0.74 | 375 | 1.8 | 17500 |
| 900-16 | 1800 | 251 | 93.4 | 0.74 | 375 | 1.8 | 18000 |
| 900-16 | 2000 | 279 | 93.6 | 0.74 | 375 | 1.8 | 19000 |
| 1000-16 | 2240 | 312 | 93.6 | 0.74 | 375 | 1.8 | 24000 |
| 1000-16 | 2500 | 347 | 93.7 | 0.74 | 375 | 1.8 | 25000 |
| 1000-16 | 2500 | 389 | 93.8 | 0.74 | 375 | 1.8 | 26000 |
YF系列10kV三相异步电动机技术数据(设计值)见表1
| 型号 | 额定功率(kW) | 额定电流 (A) | 转速 (r/min) | 效率 (%) | 功率因数COSφ | 最大转矩额定转矩 Mmax/Mn | 转子压 U2(V) | 转子电流 l2(A) | 转动惯量J电机 kg. m² | 重量 (kg) |
| YR450-4 | 315 | 23.4 | 1481 | 92.5 | 0.84 | 1.8 | 538 | 360 | 16.5 | 4125 |
| YR450-4 | 355 | 26.3 | 1478 | 92.8 | 0.84 | 1.8 | 538 | 407 | 16.5 | 4180 |
| YR450-4 | 400 | 29.2 | 1479 | 93.1 | 0.85 | 1.8 | 591 | 416 | 16.5 | 4246 |
| YR450-4 | 450 | 32.8 | 1480 | 93.3 | 0.85 | 1.8 | 657 | 419 | 18.7 | 4422 |
| YR450-4 | 500 | 36.3 | 1482 | 93.6 | 0.85 | 1.8 | 611 | 503 | 26.4 | 4818 |
| YR450-4 | 560 | 40.6 | 1483 | 93.8 | 0.85 | 1.8 | 677 | 505 | 27.5 | 4862 |
| YR500-4 | 630 | 45.4 | 1484 | 94.2 | 0.85 | 1.8 | 742 | 518 | 29.7 | 5005 |
| YR500-4 | 710 | 51.0 | 1483 | 94.6 | 0.85 | 1.8 | 762 | 569 | 29.7 | 5170 |
| YR500-4 | 800 | 56.7 | 1484 | 94.7 | 0.86 | 1.8 | 845 | 576 | 31.9 | 5368 |
| YR500-4 | 900 | 63.7 | 1479 | 94.8 | 0.86 | 1.8 | 767 | 730 | 46.2 | 6765 |
| YR500-4 | 1000 | 70.7 | 1482 | 94.9 | 0.86 | 1.8 | 874 | 703 | 49.5 | 7205 |
| YR560-4 | 1120 | 78.2 | 1480 | 95.1 | 0.87 | 1.8 | 874 | 792 | 49.5 | 7315 |
| YR560-4 | 1250 | 87.1 | 1483 | 95.2 | 0.87 | 1.8 | 1022 | 750 | 58.3 | 7425 |
| YR560-4 | 1400 | 97.5 | 1484 | 95.3 | 0.87 | 1.8 | 1117 | 765 | 83.6 | 8987 |
| YR630-4 | 1600 | 110.0 | 1484 | 95.4 | 0.88 | 1.8 | 1233 | 793 | 96.8 | 9460 |
| YR630-4 | 1800 | 123.7 | 1484 | 95.5 | 0.88 | 1.8 | 1328 | 824 | 96.8 | 9625 |
| YR630-4 | 2000 | 137.3 | 1485 | 95.6 | 0.88 | 1.8 | 1496 | 810 | 110.0 | 9900 |
| YR450-6 | 280 | 21.6 | 983 | 92.2 | 0.81 | 1.8 | 564 | 306 | 24.2 | 4400 |
| YR450-6 | 315 | 24.3 | 982 | 92.4 | 0.81 | 1.8 | 520 | 376 | 37.4 | 4565 |
| YR450-6 | 355 | 27.3 | 983 | 92.6 | 0.81 | 1.8 | 568 | 388 | 40.7 | 4686 |
| YR450-6 | 400 | 30.7 | 983 | 92.8 | 0.81 | 1.8 | 624 | 396 | 44.0 | 4785 |
| YR500-6 | 450 | 34.5 | 981 | 93.1 | 0.81 | 1.8 | 624 | 449 | 44.0 | 4983 |
| YR500-6 | 500 | 38.2 | 982 | 93.4 | 0.81 | 1.8 | 694 | 446 | 47.3 | 5060 |
| YR500-6 | 560 | 42.6 | 984 | 93.6 | 0.81 | 1.8 | 779 | 442 | 50.6 | 5159 |
| YR500-6 | 630 | 47.3 | 985 | 93.8 | 0.82 | 1.8 | 730 | 532 | 69.3 | 6655 |
| YR500-6 | 710 | 53.2 | 986 | 94.0 | 0.82 | 1.8 | 821 | 531 | 75.9 | 6985 |
| YR560-6 | 800 | 58.3 | 985 | 94.3 | 0.84 | 1.8 | 821 | 604 | 75.9 | 7205 |
| YR560-6 | 900 | 65.5 | 986 | 94.5 | 0.84 | 1.8 | 934 | 591 | 80.3 | 7370 |
| YR560-6 | 1000 | 71.7 | 987 | 94.7 | 0.85 | 1.8 | 897 | 684 | 108.9 | 8855 |
| YR560-6 | 1120 | 80.2 | 989 | 94.9 | 0.85 | 1.8 | 1043 | 651 | 113.3 | 9405 |
| YR630-6 | 1250 | 89.3 | 989 | 95.1 | 0.85 | 1.8 | 1137 | 666 | 124.3 | 9570 |
| YR630-6 | 1400 | 99.8 | 990 | 95.3 | 0.85 | 1.8 | 1249 | 677 | 133.1 | 9900 |
| YR630-6 | 1600 | 113.9 | 990 | 95.4 | 0.85 | 1.8 | 1246 | 685 | 141.9 | 10230 |
| YR500-8 | 280 | 23.4 | 735 | 92.2 | 0.75 | 1.8 | 564 | 312 | 48.4 | 4895 |
| YR500-8 | 315 | 26.3 | 736 | 92.3 | 0.75 | 1.8 | 619 | 318 | 50.6 | 4983 |
| YR500-8 | 355 | 29.5 | 736 | 92.5 | 0.75 | 1.8 | 689 | 321 | 56.1 | 5060 |
| YR500-8 | 400 | 33.2 | 734 | 92.8 | 0.75 | 1.8 | 688 | 366 | 56.1 | 5170 |
| YR500-8 | 450 | 36.2 | 736 | 93.1 | 0.77 | 1.8 | 773 | 364 | 59.4 | 5280 |
| YR500-8 | 500 | 40.2 | 740 | 93.3 | 0.77 | 1.8 | 881 | 346 | 85.8 | 6666 |
| YR560-8 | 560 | 43.7 | 739 | 93.6 | 0.79 | 1.8 | 949 | 360 | 91.3 | 6930 |
| YR560-8 | 630 | 49.1 | 739 | 93.8 | 0.79 | 1.8 | 1030 | 373 | 99.0 | 7194 |
| YR560-8 | 710 | 55.2 | 738 | 94.0 | 0.79 | 1.8 | 1030 | 424 | 99.0 | 7425 |
| YR560-8 | 800 | 62.1 | 741 | 94.2 | 0.79 | 1.8 | 1132 | 431 | 155.1 | 8800 |
| YR630-8 | 900 | 67.1 | 741 | 94.4 | 0.82 | 1.8 | 1245 | 439 | 166.1 | 9350 |
| YR630-8 | 1000 | 74.4 | 740 | 94.6 | 0.82 | 1.8 | 1245 | 491 | 166.1 | 9515 |
| YR630-8 | 1120 | 83.2 | 741 | 94.8 | 0.82 | 1.8 | 1382 | 494 | 177.1 | 9845 |
| YR500-10 | 250 | 21.9 | 587 | 91.4 | 0.72 | 1.8 | 536 | 288 | 53.9 | 4884 |
| YR500-10 | 280 | 24.5 | 586 | 91.7 | 0.72 | 1.8 | 536 | 327 | 53.9 | 4961 |
| YR500-10 | 315 | 27.4 | 585 | 92.1 | 0.72 | 1.8 | 581 | 339 | 57.2 | 5038 |
| YR500-10 | 355 | 30.9 | 586 | 92.2 | 0.72 | 1.8 | 632 | 351 | 60.5 | 5148 |
| YR560-10 | 400 | 33.8 | 586 | 92.4 | 0.74 | 1.8 | 690 | 359 | 63.8 | 5258 |
| YR560-10 | 450 | 37.3 | 589 | 92.8 | 0.75 | 1.8 | 701 | 397 | 101.2 | 6644 |
| YR560-10 | 500 | 41.4 | 590 | 93.0 | 0.75 | 1.8 | 775 | 396 | 107.8 | 6908 |
| YR560-10 | 560 | 45.6 | 588 | 93.2 | 0.76 | 1.8 | 774 | 449 | 107.8 | 7172 |
| YR560-10 | 630 | 51.2 | 589 | 93.4 | 0.76 | 1.8 | 868 | 447 | 117.7 | 7403 |
| YR630-10 | 710 | 56.1 | 590 | 93.7 | 0.78 | 1.8 | 889 | 499 | 172.7 | 8800 |
| YR630-10 | 800 | 63.1 | 591 | 93.8 | 0.78 | 1.8 | 1011 | 488 | 184.8 | 9328 |
| YR630-10 | 900 | 70.9 | 591 | 93.9 | 0.78 | 1.8 | 1086 | 511 | 194.7 | 9493 |
| YR630-10 | 1000 | 78.7 | 591 | 94.1 | 0.78 | 1.8 | 1179 | 524 | 212.3 | 9812 |
| YR560-12 | 280 | 25 | 489 | 91.4 | 0.72 | 1.8 | 583 | 299 | 96.8 | 6545 |
| YR560-12 | 315 | 27.6 | 489 | 91.5 | 0.72 | 1.8 | 635 | 308 | 104.5 | 6611 |
| YR560-12 | 355 | 31.1 | 489 | 91.6 | 0.72 | 1.8 | 699 | 315 | 114.4 | 6875 |
| YR560-12 | 400 | 34.9 | 490 | 91.8 | 0.72 | 1.8 | 773 | 319 | 121.0 | 7150 |
| YR560-12 | 450 | 39.1 | 490 | 92.2 | 0.72 | 1.8 | 867 | 318 | 133.1 | 7370 |
| YR630-12 | 500 | 42.8 | 491 | 92.4 | 0.73 | 1.8 | 774 | 398 | 172.7 | 8745 |
| YR630-12 | 560 | 47.1 | 491 | 92.8 | 0.74 | 1.8 | 821 | 423 | 183.7 | 9295 |
| YR630-12 | 630 | 52.8 | 491 | 93.1 | 0.74 | 1.8 | 927 | 418 | 201.3 | 9460 |
| YR630-12 | 710 | 59.3 | 491 | 93.4 | 0.74 | 1.8 | 994 | 441 | 215.6 | 9790 |
| 型号 | 额定功率 kw | 额定电流 A | 额定负载下 | 同步转速 r/min | 最大转矩额定转矩(标准值) | 重量 kg | |
| 效率% | 功率因素cosφ | ||||||
| YR710-4 | 2500 | 178 | 95.6 | 0.85 | 1500 | 1.8 | 12000 |
| YR7104 | 2800 | 199 | 95.6 | 0.85 | 1500 | 1.8 | 12500 |
| YR710-4 | 3150 | 224 | 95.7 | 0.85 | 1500 | 1.8 | 13000 |
| YR710-4 | 3550 | 252 | 95.8 | 0.85 | 1500 | 1.8 | 13500 |
| YR800-4 | 4000 | 281 | 95.9 | 0.86 | 1500 | 1.8 | 14500 |
| YR800-4 | 4500 | 315 | 96.0 | 0.86 | 1500 | 1.8 | 15000 |
| YR800-4 | 5000 | 350 | 96.1 | 0.86 | 1500 | 1.8 | 15500 |
| YR800-4 | 5600 | 391 | 96.2 | 0.86 | 1500 | 1.8 | 16000 |
| YR710-6 | 2000 | 164 | 95.4 | 0.83 | 1000 | 1.8 | 12500 |
| YR710-6 | 2240 | 162 | 95.4 | 0.83 | 1000 | 1.8 | 13000 |
| YR710-6 | 2500 | 164 | 95.5 | 0.83 | 1000 | 1.8 | 13500 |
| YR800-6 | 2800 | 202 | 95.5 | 0.84 | 1000 | 1.8 | 14500 |
| YR800-6 | 3150 | 227 | 95.4 | 0.84 | 1000 | 1.8 | 15000 |
| YR800-6 | 3550 | 255 | 95.7 | 0.84 | 1000 | 1.8 | 16000 |
| YR900-6 | 4000 | 287 | 95.8 | 0.84 | 1000 | 1.8 | 17500 |
| YR900-6 | 4500 | 323 | 95.9 | 0.84 | 1000 | 1.8 | 18500 |
| YR900-6 | 5000 | 358 | 96.0 | 0.84 | 1000 | 1.8 | 19000 |
| YR710-8 | 1400 | 106 | 94.5 | 0.81 | 750 | 1.8 | 12500 |
| YR710-8 | 1600 | 116 | 94.6 | 0.81 | 750 | 1.8 | 13000 |
| YR710-8 | 1800 | 136 | 94.7 | 0.81 | 750 | 1.8 | 13500 |
| YR710-8 | 2000 | 150 | 94.8 | 0.81 | 750 | 1.8 | 14500 |
| YR800-8 | 2240 | 167 | 94.9 | 0.82 | 750 | 1.8 | 15000 |
| YR800-8 | 2500 | 186 | 95.0 | 0.82 | 750 | 1.8 | 15500 |
| YR800-8 | 2800 | 205 | 95.1 | 0.82 | 750 | 1.8 | 16000 |
| YR900-8 | 3150 | 233 | 95.2 | 0.82 | 750 | 1.8 | 18000 |
| YR900-8 | 3550 | 260 | 95.3 | 0.83 | 750 | 1.8 | 19000 |
| YR1000-8 | 4000 | 292 | 95.4 | 0.83 | 750 | 1.8 | 21000 |
| YR1000-8 | 4500 | 328 | 95.5 | 0.83 | 750 | 1.8 | 22000 |
| YR1000-8 | 5000 | 364 | 95.6 | 0.83 | 750 | 1.8 | 23000 |
| YR710-10 | 1120 | 89 | 94.1 | 0.79 | 600 | 1.8 | 12000 |
| YR710-10 | 1250 | 97 | 94.2 | 0.79 | 600 | 1.8 | 12500 |
| YR710-10 | 1400 | 109 | 94.3 | 0.79 | 600 | 1.8 | 13000 |
| YR710-10 | 1600 | 124 | 94.3 | 0.79 | 600 | 1.8 | 13500 |
| YR800-10 | 1800 | 136 | 94.5 | 0.80 | 600 | 1.8 | 14000 |
| YR800-10 | 2000 | 151 | 94.6 | 0.80 | 600 | 1.8 | 15000 |
| YR800-10 | 2240 | 168 | 94.7 | 0.80 | 600 | 1.8 | 16000 |
| YR900-10 | 2500 | 191 | 94.6 | 0.80 | 600 | 1.8 | 18000 |
| YR900-10 | 2800 | 214 | 94.7 | 0.80 | 600 | 1.8 | 19000 |
| YR1000-10 | 3150 | 237 | 94.8 | 0.81 | 600 | 1.8 | 22000 |
| YR1000-10 | 3550 | 267 | 94.9 | 0.81 | 600 | 1.8 | 23000 |
| YR710-12 | 900 | 76 | 93.2 | 0.74 | 500 | 1.8 | 12500 |
| YR710-12 | 1000 | 84 | 93.3 | 0.74 | 500 | 1.8 | 13000 |
| YR710-12 | 1120 | 94 | 93.4 | 0.74 | 500 | 1.8 | 13500 |
| YR800-12 | 1250 | 103 | 93.5 | 0.75 | 500 | 1.8 | 14000 |
| YR800-12 | 1450 | 116 | 93.6 | 0.75 | 500 | 1.8 | 15000 |
| YR800-12 | 1600 | 132 | 93.7 | 0.75 | 500 | 1.8 | 16000 |
| YR900-12 | 1600 | 130 | 93.8 | 0.76 | 500 | 1.8 | 17000 |
| YR900-12 | 1800 | 146 | 93.9 | 0.76 | 500 | 1.8 | 17500 |
| YR900-12 | 2000 | 162 | 94.0 | 0.76 | 500 | 1.8 | 18500 |
| YR900-12 | 2240 | 169 | 94.1 | 0.76 | 500 | 1.8 | 19000 |
| YR1000-12 | 2500 | 199 | 94.2 | 0.78 | 500 | 1.8 | 21000 |
| YR1000-12 | 2800 | 223 | 94.3 | 0.78 | 500 | 1.8 | 22000 |
| YR1000-12 | 3150 | 247 | 94.4 | 0.78 | 500 | 1.8 | 23000 |
| YR1000-12 | 3550 | 278 | 94.5 | 0.78 | 500 | 1.8 | 24000 |
YR 绕线式异步电动机 概述
YR系列我公司采用国内外先进技术、结合我公司生产高压电动机的实践经验而建立的优化系列产品，是JR老系列高压电动机的更新换代产品。
本系列产品用料考究，制造精良，具有力能指标高，噪音及振动小，可靠性高，使用安装、维修方便等优点。
本系列电动机的功率等级、安装尺寸、电气性能均符合GB/T4772.1-2-1999《旋转电机尺寸和输出功率等级》、GB755-2000《旋转电机定额与性能》标准及JB/T7594-1994《YR系列高压三相异电动机 技术条件》标准，GB/T13957-2008《大型三相异步电动机基本系列技术条件》。
本系列电动机的各部分机械尺寸、公差符合国家标准GB/T1800-GB/T1804《极限与配合》和国际标准化委员会ISO标准。
本系列电动机的外壳防护等级根据GB/T4942.1-2001《旋转电机外壳防护分级(IP代码)》为P23和P44两种，如果用户要求其他防护等级如IP54或IP24等可另行协商。
本系列电动机的冷却方法根据GB/T1993-1993和IEC60034-5《旋转电机冷却方法》的标准为IC01，如果用户要求其他冷却方法可另外协商。
本系列电动机基本安装方法为卧式带底脚(IMB3)结构，符合GB/T997-2003和IEC80034-7《旋转电机结构及安装型式(IM代号)》的规定。
YR 绕线式异步电动机 结构说明
电动机采用箱式结构。机座用钢板焊成的箱型结构，重量轻，刚度好。机座两侧面及顶部均有防护罩及盖板，拆下防护罩或盖板后可以观察和触及电动机的内部， 便利电动机的维护和修理。
YR系列基本防护等级为IP23；将其防护罩及盖板拆去并在机座顶部及侧面安装不同的顶罩及盖板后，可以形成各种不同防护方式及冷却方式的电动机。
定子采用外装压结构。定子绕组采用F级少龄绝缘材料，端部有可靠的固定及绑扎， 并采用真空压力浸渍无溶剂漆工艺(VPI)处理，因此电动机的绝缘性能优良可靠， 机械强度好， 防潮性能强。
轴承有滚动轴承和滑动轴承两种形式， 按电动机功率大小及转速而定其基本形式的防护等级为IP44， 如电动机具有较高的防护等级时，轴承的防护等级也随之提高。
电动机有一个圆柱型轴伸，机座号355-500采用平键联结，机座号560-630采用切向键联结，也可根据用户需要制造。
主出线盒为IP54防护等级，一般装于电动机右侧(面对电机轴伸端看)。也可按订货要求装于电动机左侧，主出线盒内、外均有单独的接地端子。
YR 绕线式异步电动机 用途
电动机可用于驱动各种通用机械如压缩机、水泵、破碎机、切削机床、运输机械极其他机械设备、在矿山、机械、冶金、石油、化工、电站等各种工矿企业中作原动机用，用以传动鼓风机、磨煤机、轧钢机、卷扬机的电动机应在订货时提供有关的技术资料，并要签定技术协议，作为电机特殊设计的依据， 以确保电动机的可靠运行。
YR 绕线式异步电动机 技术数据
YR系列6kV三相异步电动机技术数据(保证值)见表1
| 型号 | 额定功率(kW) | 定子电流 (A) | 额定 转速 (r/min) | 效率 (%) | 功率 因数 cosφ | 量大转矩额定转矩 Mmax/Min | 转子电压U2(V) | 转子电流l2(A) | 转动惯量J电机 kg. m² | 重量 (kg) |
| YR355-4 | 220 | 27.5 | 1470 | 92.7 | 0.83 | 1.8 | 314 | 437.8 | 7.7 | 2420 |
| YR355-4 | 250 | 30.8 | 1471 | 93.0 | 0.84 | 1.8 | 342 | 455.2 | 8.8 | 2519 |
| YR355-4 | 280 | 34.5 | 1472 | 93.1 | 0.84 | 1.8 | 376 | 461.8 | 9.9 | 2607 |
| YR400-4 | 315 | 38.3 | 1473 | 93.2 | 0.85 | 1.8 | 376 | 519 | 12.1 | 2893 |
| YR400-4 | 355 | 43.1 | 1474 | 93.3 | 0.85 | 1.8 | 418 | 524 | 13.2 | 2981 |
| YR400-4 | 400 | 48.4 | 1473 | 93.5 | 0.85 | 1.8 | 438 | 565 | 14.3 | 3069 |
| YR400-4 | 450 | 54.4 | 1475 | 93.7 | 0.85 | 1.8 | 493 | 562 | 15.4 | 3201 |
| YR400-4 | 500 | 60.3 | 1476 | 93.9 | 0.85 | 1.8 | 537 | 572 | 16.5 | 3278 |
| YR450-4 | 560 | 67.3 | 1482 | 94.2 | 0.85 | 1.8 | 672 | 530 | 18.7 | 3993 |
| YR450-4 | 630 | 74.6 | 1480 | 94.5 | 0.86 | 1.8 | 667 | 582.3 | 20.9 | 4136 |
| YR450-4 | 710 | 84.0 | 1481 | 94.6 | 0.86 | 1.8 | 759 | 596 | 22.0 | 4246 |
| YR450-4 | 800 | 93.4 | 1482 | 94.7 | 0.87 | 1.8 | 914 | 534 | 23.1 | 4422 |
| YR500-4 | 900 | 105.0 | 1482 | 94.8 | 0.87 | 1.8 | 794 | 694 | 30.8 | 4851 |
| YR500-4 | 1000 | 116.6 | 1484 | 94.9 | 0.87 | 1.8 | 894 | 682 | 33.0 | 4994 |
| YR500-4 | 1120 | 130.4 | 1486 | 95.0 | 0.87 | 1.8 | 1022 | 666 | 35.2 | 5181 |
| YR500-4 | 1250 | 145.4 | 1484 | 95.1 | 0.87 | 1.8 | 1052 | 723 | 37.4 | 5357 |
| YR560-4 | 1400 | 162.7 | 1484 | 95.2 | 0.87 | 1.8 | 1050 | 810 | 62.7 | 7007 |
| YR560-4 | 1600 | 185.7 | 484 | 95.3 | 0.87 | 1.8 | 1130 | 862 | 66.0 | 7106 |
| YR560-4 | 1800 | 208.7 | 1484 | 95.4 | 0.87 | 1.8 | 1225 | 894 | 71.5 | 7414 |
| YR630-4 | 2000 | 231.6 | 1486 | 95.5 | 0.87 | 1.8 | 1379 | 904 | 99.0 | 8987 |
| YR630-4 | 2240 | 259.2 | 1487 | 95.6 | 0.87 | 1.8 | 1517 | 918 | 106.7 | 9427 |
| YR630-4 | 2500 | 288.9 | 1487 | 95.7 | 0.87 | 1.8 | 1643 | 948 | 113.3 | 9867 |
| YR400-6 | 220 | 28.3 | 979 | 92.5 | 0.81 | 1.8 | 416 | 328 | 15.4 | 2871 |
| YR400-6 | 250 | 31.6 | 980 | 92.7 | 0.82 | 1.8 | 468 | 330 | 16.5 | 2970 |
| YR400-6 | 280 | 35.4 | 979 | 92.8 | 0.82 | 1.8 | 468 | 374 | 17.6 | 3069 |
| YR400-6 | 315 | 39.7 | 982 | 93.0 | 0.82 | 1.8 | 561 | 346 | 19.8 | 3190 |
| YR400-6 | 355 | 44.7 | 982 | 93.2 | 0.82 | 1.8 | 624 | 350 | 20.9 | 3289 |
| YR450-6 | 400 | 49.6 | 985 | 93.5 | 0.83 | 1.8 | 694 | 354 | 27.5 | 3938 |
| YR450-6 | 450 | 55.1 | 983 | 93.6 | 0.84 | 1.8 | 714 | 388 | 29.7 | 4059 |
| YR450-6 | 500 | 61.1 | 984 | 93.8 | 0.84 | 1.8 | 792 | 387 | 30.8 | 4290 |
| YR450-6 | 560 | 68.2 | 986 | 94.0 | 0.84 | 1.8 | 891 | 384 | 33.0 | 4345 |
| YR500-6 | 630 | 75.6 | 984 | 94.3 | 0.85 | 1.8 | 682 | 573 | 45.1 | 4565 |
| YR500-6 | 710 | 85.1 | 985 | 94.5 | 0.85 | 1.8 | 748 | 587 | 47.3 | 4708 |
| YR500-6 | 800 | 95.6 | 986 | 94.7 | 0.85 | 1.8 | 830 | 591 | 52.8 | 4873 |
| YR500-6 | 900 | 107.5 | 985 | 94.8 | 0.85 | 1.8 | 896 | 621 | 56.1 | 5038 |
| YR560-6 | 1000 | 119.2 | 986 | 95.0 | 0.85 | 1.8 | 912 | 701 | 69.3 | 6380 |
| YR560-6 | 1120 | 133.3 | 987 | 95.1 | 0.85 | 1.8 | 1020 | 696 | 77.0 | 6666 |
| YR560-6 | 1250 | 148.6 | 987 | 95.2 | 0.85 | 1.8 | 1118 | 712 | 81.4 | 6853 |
| YR630-6 | 1400 | 166.3 | 988 | 95.3 | 0.85 | 1.8 | 836 | 1072 | 114.4 | 7788 |
| YR630-6 | 1600 | 189.9 | 989 | 95.4 | 0.85 | 1.8 | 920 | 1114 | 117.7 | 8063 |
| YR630-6 | 1800 | 213.4 | 989 | 95.5 | 0.85 | 1.8 | 1022 | 1126 | 133.1 | 8338 |
| YR400-8 | 220 | 29.4 | 734 | 92.2 | 0.78 | 1.8 | 568 | 237 | 22.0 | 2860 |
| YR400-8 | 250 | 33.4 | 733 | 923.0 | 0.78 | 1.8 | 567 | 270 | 23.1 | 2959 |
| YR400-8 | 280 | 36.9 | 732 | 92.5 | 0.79 | 1.8 | 012 | 282 | 24.2 | 3025 |
| YR450-8 | 315 | 40.9 | 733 | 92.6 | 0.80 | 1.8 | 572 | 341 | 29.7 | 3751 |
| YR450-8 | 355 | 46.1 | 733 | 92.7 | 0.80 | 1.8 | 620 | 354 | 31.9 | 3072 |
| YR450-8 | 400 | 51.1 | 732 | 93.0 | 0.80 | 1.8 | 677 | 365 | 34.1 | 3960 |
| YR450-8 | 450 | 57.4 | 734 | 93.2 | 0.81 | 1.8 | 737 | 375 | 37.4 | 4103 |
| YR500-8 | 500 | 63.5 | 737 | 93.5 | 0.81 | 1.8 | 706 | 431 | 47.3 | 4565 |
| YR500-8 | 560 | 71.1 | 737 | 93.7 | 0.81 | 1.8 | 777 | 444 | 49.5 | 4686 |
| YR500-8 | 630 | 79.7 | 738 | 93.9 | 0.81 | 1.8 | 863 | 449 | 55.0 | 4862 |
| YR500-8 | 710 | 89.7 | 737 | 94.0 | 0.81 | 1.8 | 927 | 473 | 58.3 | 5027 |
| YR560-8 | 800 | 100.9 | 738 | 94.2 | 0.81 | 1.8 | 929 | 529 | 88.0 | 6118 |
| YR560-8 | 900 | 113.4 | 739 | 94.3 | 0.81 | 18.0 | 1068 | 519 | 96.8 | 6358 |
| YR560-8 | 1000 | 125.8 | 738 | 94.4 | 0.81 | 1.8 | 1151 | 536 | 103.4 | 6600 |
| YR630-8 | 1120 | 140.8 | 741 | 94.5 | 0.81 | 1.8 | 1149 | 596 | 136.4 | 7799 |
| YR630-8 | 1250 | 157.0 | 741 | 14.6 | 0.81 | 1.8 | 1245 | 614 | 143.0 | 3140 |
| YR630-8 | 1400 | 175.6 | 741 | 94.7 | 0.81 | 1.8 | 1358 | 531 | 156.2 | 8481 |
| YR450-10 | 220 | 30.1 | 584 | 91.3 | 0.77 | 1.8 | 563 | 242 | 29.7 | 3641 |
| YR450-10 | 250 | 34.5 | 584 | 91.5 | 0.77 | 1.8 | 610 | 254 | 33.0 | 3751 |
| YR450-10 | 280 | 37.6 | 584 | 91.8 | 0.78 | 1.8 | 664 | 261 | 35.2 | 3751 |
| YR450-10 | 315 | 42.3 | 584 | 91.9 | 0.78 | 1.8 | 732 | 266 | 38.5 | 3949 |
| YR450-10 | 355 | 47.6 | 585 | 92.1 | 0.78 | 1.8 | 813 | 270 | 40.7 | 4092 |
| YR500-10 | 400 | 53.2 | 588 | 92.8 | 0.78 | 1.8 | 732 | 337 | 55.0 | 4521 |
| YR500-10 | 450 | 59.6 | 588 | 93.1 | 0.78 | 1.8 | 700 | 503 | 57.2 | 4642 |
| YR500-10 | 500 | 65.3 | 588 | 93.3 | 0.79 | 1.8 | 855 | 362 | 83.8 | 4829 |
| YR500-10 | 560 | 73.0 | 588 | 93.5 | 0.79 | 1.8 | 918 | 379 | 68.2 | 4994 |
| YR560-10 | 630 | 81.0 | 589 | 93.6 | 0.80 | 1.8 | 979 | 424 | 94.6 | 6127 |
| YR560-10 | 710 | 91.1 | 590 | 93.7 | 0.80 | 1.8 | 1058 | 417 | 104.5 | 6358 |
| YR560-10 | 800 | 102.6 | 590 | 93.8 | 0.80 | 1.8 | 1204 | 437 | 111.1 | 6578 |
| YR630-10 | 900 | 115.3 | 591 | 93.9 | 0.80 | 1.8 | 1143 | 483 | 151.8 | 7799 |
| YR630-10 | 1000 | 127.8 | 591 | 94.1 | 0.80 | 1.8 | 1239 | 490 | 161.7 | 8140 |
| YR630-10 | 1120 | 143.0 | 591 | 94.2 | 0.80 | 1.8 | 1351 | 509 | 177.1 | 8481 |
| YR450-12 | 220 | 32.5 | 455 | 90.4 | 0.72 | 1.8 | 498 | 274 | 41.8 | 3938 |
| YR450-12 | 250 | 36.5 | 489 | 91.5 | 0.72 | 1.8 | 568 | 271 | 46.2 | 4081 |
| YR500-12 | 280 | 40.3 | 487 | 94.7 | 0.73 | 1.8 | 519 | 350 | 51.7 | 4345 |
| YR500-12 | 315 | 44.5 | 487 | 92.0 | 0.74 | 1.8 | 593 | 342 | 55 | 4477 |
| YR500-12 | 355 | 49.5 | 487 | 92.1 | 0.75 | 1.8 | 692 | 327 | 60.5 | 4631 |
| YR500-12 | 400 | 55.6 | 488 | 92.3 | 0.75 | 1.8 | 692 | 375 | 66 | 4785 |
| YR560-12 | 450 | 60.8 | 487 | 92.6 | 0.77 | 1.8 | 822 | 345 | 102.3 | 5918 |
| YR560-12 | 500 | 67.4 | 489 | 927.0 | 0.77 | 1.8 | 923 | 337 | 107.8 | 0094 |
| YR560-12 | 560 | 75.4 | 490 | 92.8 | 0.77 | 1.8 | 1057 | 329 | 115.6 | 6303 |
| YR560-12 | 630 | 84.7 | 491 | 92.9 | 0.77 | 1.8 | 1233 | 314 | 132 | 6512 |
| YR630-12 | 710 | 95.4 | 491 | 93.0 | 0.77 | 1.8 | 1204 | 383 | 174 | 7711 |
| YR630-12 | 800 | 107.4 | 491 | 93.1 | 0.77 | 1.8 | 1305 | 399 | 185.9 | 8041 |
| YR630-12 | 900 | 120.7 | 491 | 93.2 | 0.77 | 1.8 | 1423 | 412 | 203.5 | 8371 |
| 型号 | 额定功率kW | 额定电流 A | 额定负载下 | 同步转速 r/min | 最大转矩 额定转矩(标准值) | 重量 kg | |
| 效 率% | 功率因素COSφ | ||||||
| YR710-4 | 2800 | 324 | 95.8 | 0.87 | 1500 | 1.8 | 11500 |
| YR710-4 | 3150 | 364 | 95.9 | 0.87 | 1500 | 1.8 | 12000 |
| YR710-4 | 3550 | 409 | 96.0 | 0.87 | 1500 | 1.8 | 12500 |
| YR710-4 | 4000 | 461 | 96.1 | 0.87 | 1500 | 1.8 | 13000 |
| YR800-4 | 4500 | 518 | 96.2 | 0.87 | 1500 | 1.8 | 14500 |
| YR800-4 | 5000 | 575 | 98.3 | 0.87 | 1500 | 1.8 | 15200 |
| YR800-4 | 5600 | 666 | 96.4 | 0.87 | 1500 | 1.8 | 16000 |
| YR710-6 | 2000 | 237 | 95.5 | 0.85 | 1000 | 1.8 | 11500 |
| YR710-6 | 2240 | 200 | 95.6 | 0.85 | 1000 | 1.8 | 10000 |
| YR710-6 | 2500 | 296 | 95.7 | 0.85 | 1000 | 1.8 | 12500 |
| YR710-6 | 2800 | 332 | 95.7 | 0.85 | 1000 | 1.8 | 13000 |
| YR800-6 | 3150 | 373 | 95.8 | 0.85 | 1000 | 1.8 | 14500 |
| YR800-6 | 3550 | 420 | 95.9 | 0.85 | 1000 | 1.8 | 15000 |
| YR800-6 | 4000 | 472 | 96.0 | 0.85 | 1000 | 1.8 | 15500 |
| YR800-6 | 4500 | 531 | 96.1 | 0.85 | 1000 | 1.8 | 16000 |
| YR710-8 | 1800 | 220 | 95.0 | 0.83 | 750 | 1.8 | 11500 |
| YR710-8 | 2000 | 244 | 95.1 | 0.83 | 750 | 1.8 | 12000 |
| YR710-8 | 2240 | 273 | 95.2 | 0.83 | 750 | 1.8 | 10000 |
| YR800-8 | 2500 | 305 | 95.3 | 0.83 | 750 | 1.8 | 14500 |
| YR800-8 | 2800 | 341 | 95.4 | 0.83 | 750 | 1.8 | 15200 |
| YR800-8 | 3150 | 378 | 95.5 | 0.84 | 750 | 1.8 | 16000 |
| YR900-8 | 3550 | 426 | 95.6 | 0.84 | 750 | 1.8 | 17500 |
| YR900-8 | 4000 | 479 | 95.7 | 0.84 | 750 | 1.8 | 18000 |
| YR900-8 | 4500 | 539 | 95.5 | 0.54 | 750 | 1.8 | 15000 |
| YR710-10 | 1400 | 177 | 94.4 | 0.81 | 600 | 1.8 | 12000 |
| YR710-10 | 1600 | 202 | 94.5 | 0.81 | 600 | 1.8 | 12500 |
| YR710-10 | 1800 | 227 | 94.6 | 0.81 | 500 | 1.8 | 13000 |
| YR800-10 | 2000 | 251 | 94.7 | 0.81 | 600 | 1.8 | 14500 |
| 800-10 | 2240 | 281 | 94.8 | 0.81 | 600 | 1.8 | 15200 |
| 800-10 | 2500 | 313 | 94.9 | 0.81 | 600 | 1.8 | 16000 |
| 900-10 | 2800 | 346 | 95.0 | 0.82 | 600 | 1.8 | 17500 |
| 900-10 | 3150 | 389 | 95.1 | 0.82 | 800 | 1.8 | 18000 |
| 900-10 | 3550 | 438 | 95.2 | 0.82 | 600 | 1.8 | 18500 |
| 900-10 | 4000 | 493 | 95.3 | 0.82 | 600 | 1.8 | 19000 |
| 1000-10 | 4500 | 554 | 95.4 | 0.82 | 600 | 1.8 | 24000 |
| 1000-10 | 5000 | 615 | 95.5 | 0.82 | 600 | 1.8 | 25000 |
| 1000-10 | 5600 | 688 | 95.6 | 0.82 | 200 | 1.8 | 26000 |
| 710-12 | 1120 | 148 | 03.8 | 0.78 | 500 | 1.8 | 12000 |
| 710-12 | 1250 | 165 | 93.9 | 0.78 | 500 | 1.8 | 13000 |
| 710-12 | 1400 | 184 | 94.0 | 0.78 | 500 | 1.8 | 13500 |
| 800-12 | 1600 | 210 | 94.1 | 0.78 | 500 | 1.8 | 14500 |
| 800-12 | 1800 | 236 | 94.2 | 0.78 | 500 | 1.8 | 15000 |
| 800-12 | 2000 | 262 | 94.3 | 0.78 | 500 | 1.8 | 15500 |
| 800-12 | 2240 | 293 | 94.4 | 0.78 | 500 | 1.8 | 16000 |
| 900-12 | 2500 | 323 | 94.5 | 0.79 | 500 | 1.8 | 17500 |
| 900-12 | 2800 | 361 | 94.6 | 0.79 | 500 | 1.8 | 18000 |
| 900-12 | 3150 | 406 | 94.7 | 0.79 | 500 | 1.8 | 19000 |
| 1000-12 | 3550 | 457 | 94.8 | 0.79 | 500 | 1.8 | 23000 |
| 1000-12 | 4000 | 514 | 94.9 | 0.79 | 500 | 1.8 | 24000 |
| 1000-12 | 4500 | 577 | 95.0 | 0.79 | 500 | 1.8 | 25000 |
| 1000-12 | 5000 | 641 | 95.1 | 0.79 | 500 | 1.8 | 26000 |
| 710-16 | 030 | 92 | 92.3 | 0.72 | 375 | 1.8 | 10500 |
| 710-16 | 710 | 103 | 92.6 | 0.72 | 375 | 1.8 | 11000 |
| 710-16 | 800 | 116 | 92.7 | 0.72 | 375 | 1.8 | 11500 |
| 710-16 | 900 | 130 | 92.8 | 0.72 | 375 | 1.8 | 12000 |
| 800-16 | 1000 | 144 | 92.9 | 0.72 | 375 | 1.8 | 14500 |
| 800-16 | 1120 | 161 | 93.0 | 0.72 | 375 | 1.8 | 15000 |
| 800-16 | 1250 | 180 | 93.1 | 0.72 | 375 | 1.8 | 15500 |
| 800-16 | 1400 | 201 | 93.2 | 0.72 | 375 | 1.8 | 16000 |
| 900-16 | 1600 | 223 | 93.3 | 0.74 | 375 | 1.8 | 17500 |
| 900-16 | 1800 | 251 | 93.4 | 0.74 | 375 | 1.8 | 18000 |
| 900-16 | 2000 | 279 | 93.6 | 0.74 | 375 | 1.8 | 19000 |
| 1000-16 | 2240 | 312 | 93.6 | 0.74 | 375 | 1.8 | 24000 |
| 1000-16 | 2500 | 347 | 93.7 | 0.74 | 375 | 1.8 | 25000 |
| 1000-16 | 2500 | 389 | 93.8 | 0.74 | 375 | 1.8 | 26000 |
YF系列10kV三相异步电动机技术数据(设计值)见表1
| 型号 | 额定功率(kW) | 额定电流 (A) | 转速 (r/min) | 效率 (%) | 功率因数COSφ | 最大转矩额定转矩 Mmax/Mn | 转子压 U2(V) | 转子电流 l2(A) | 转动惯量J电机 kg. m² | 重量 (kg) |
| YR450-4 | 315 | 23.4 | 1481 | 92.5 | 0.84 | 1.8 | 538 | 360 | 16.5 | 4125 |
| YR450-4 | 355 | 26.3 | 1478 | 92.8 | 0.84 | 1.8 | 538 | 407 | 16.5 | 4180 |
| YR450-4 | 400 | 29.2 | 1479 | 93.1 | 0.85 | 1.8 | 591 | 416 | 16.5 | 4246 |
| YR450-4 | 450 | 32.8 | 1480 | 93.3 | 0.85 | 1.8 | 657 | 419 | 18.7 | 4422 |
| YR450-4 | 500 | 36.3 | 1482 | 93.6 | 0.85 | 1.8 | 611 | 503 | 26.4 | 4818 |
| YR450-4 | 560 | 40.6 | 1483 | 93.8 | 0.85 | 1.8 | 677 | 505 | 27.5 | 4862 |
| YR500-4 | 630 | 45.4 | 1484 | 94.2 | 0.85 | 1.8 | 742 | 518 | 29.7 | 5005 |
| YR500-4 | 710 | 51.0 | 1483 | 94.6 | 0.85 | 1.8 | 762 | 569 | 29.7 | 5170 |
| YR500-4 | 800 | 56.7 | 1484 | 94.7 | 0.86 | 1.8 | 845 | 576 | 31.9 | 5368 |
| YR500-4 | 900 | 63.7 | 1479 | 94.8 | 0.86 | 1.8 | 767 | 730 | 46.2 | 6765 |
| YR500-4 | 1000 | 70.7 | 1482 | 94.9 | 0.86 | 1.8 | 874 | 703 | 49.5 | 7205 |
| YR560-4 | 1120 | 78.2 | 1480 | 95.1 | 0.87 | 1.8 | 874 | 792 | 49.5 | 7315 |
| YR560-4 | 1250 | 87.1 | 1483 | 95.2 | 0.87 | 1.8 | 1022 | 750 | 58.3 | 7425 |
| YR560-4 | 1400 | 97.5 | 1484 | 95.3 | 0.87 | 1.8 | 1117 | 765 | 83.6 | 8987 |
| YR630-4 | 1600 | 110.0 | 1484 | 95.4 | 0.88 | 1.8 | 1233 | 793 | 96.8 | 9460 |
| YR630-4 | 1800 | 123.7 | 1484 | 95.5 | 0.88 | 1.8 | 1328 | 824 | 96.8 | 9625 |
| YR630-4 | 2000 | 137.3 | 1485 | 95.6 | 0.88 | 1.8 | 1496 | 810 | 110.0 | 9900 |
| YR450-6 | 280 | 21.6 | 983 | 92.2 | 0.81 | 1.8 | 564 | 306 | 24.2 | 4400 |
| YR450-6 | 315 | 24.3 | 982 | 92.4 | 0.81 | 1.8 | 520 | 376 | 37.4 | 4565 |
| YR450-6 | 355 | 27.3 | 983 | 92.6 | 0.81 | 1.8 | 568 | 388 | 40.7 | 4686 |
| YR450-6 | 400 | 30.7 | 983 | 92.8 | 0.81 | 1.8 | 624 | 396 | 44.0 | 4785 |
| YR500-6 | 450 | 34.5 | 981 | 93.1 | 0.81 | 1.8 | 624 | 449 | 44.0 | 4983 |
| YR500-6 | 500 | 38.2 | 982 | 93.4 | 0.81 | 1.8 | 694 | 446 | 47.3 | 5060 |
| YR500-6 | 560 | 42.6 | 984 | 93.6 | 0.81 | 1.8 | 779 | 442 | 50.6 | 5159 |
| YR500-6 | 630 | 47.3 | 985 | 93.8 | 0.82 | 1.8 | 730 | 532 | 69.3 | 6655 |
| YR500-6 | 710 | 53.2 | 986 | 94.0 | 0.82 | 1.8 | 821 | 531 | 75.9 | 6985 |
| YR560-6 | 800 | 58.3 | 985 | 94.3 | 0.84 | 1.8 | 821 | 604 | 75.9 | 7205 |
| YR560-6 | 900 | 65.5 | 986 | 94.5 | 0.84 | 1.8 | 934 | 591 | 80.3 | 7370 |
| YR560-6 | 1000 | 71.7 | 987 | 94.7 | 0.85 | 1.8 | 897 | 684 | 108.9 | 8855 |
| YR560-6 | 1120 | 80.2 | 989 | 94.9 | 0.85 | 1.8 | 1043 | 651 | 113.3 | 9405 |
| YR630-6 | 1250 | 89.3 | 989 | 95.1 | 0.85 | 1.8 | 1137 | 666 | 124.3 | 9570 |
| YR630-6 | 1400 | 99.8 | 990 | 95.3 | 0.85 | 1.8 | 1249 | 677 | 133.1 | 9900 |
| YR630-6 | 1600 | 113.9 | 990 | 95.4 | 0.85 | 1.8 | 1246 | 685 | 141.9 | 10230 |
| YR500-8 | 280 | 23.4 | 735 | 92.2 | 0.75 | 1.8 | 564 | 312 | 48.4 | 4895 |
| YR500-8 | 315 | 26.3 | 736 | 92.3 | 0.75 | 1.8 | 619 | 318 | 50.6 | 4983 |
| YR500-8 | 355 | 29.5 | 736 | 92.5 | 0.75 | 1.8 | 689 | 321 | 56.1 | 5060 |
| YR500-8 | 400 | 33.2 | 734 | 92.8 | 0.75 | 1.8 | 688 | 366 | 56.1 | 5170 |
| YR500-8 | 450 | 36.2 | 736 | 93.1 | 0.77 | 1.8 | 773 | 364 | 59.4 | 5280 |
| YR500-8 | 500 | 40.2 | 740 | 93.3 | 0.77 | 1.8 | 881 | 346 | 85.8 | 6666 |
| YR560-8 | 560 | 43.7 | 739 | 93.6 | 0.79 | 1.8 | 949 | 360 | 91.3 | 6930 |
| YR560-8 | 630 | 49.1 | 739 | 93.8 | 0.79 | 1.8 | 1030 | 373 | 99.0 | 7194 |
| YR560-8 | 710 | 55.2 | 738 | 94.0 | 0.79 | 1.8 | 1030 | 424 | 99.0 | 7425 |
| YR560-8 | 800 | 62.1 | 741 | 94.2 | 0.79 | 1.8 | 1132 | 431 | 155.1 | 8800 |
| YR630-8 | 900 | 67.1 | 741 | 94.4 | 0.82 | 1.8 | 1245 | 439 | 166.1 | 9350 |
| YR630-8 | 1000 | 74.4 | 740 | 94.6 | 0.82 | 1.8 | 1245 | 491 | 166.1 | 9515 |
| YR630-8 | 1120 | 83.2 | 741 | 94.8 | 0.82 | 1.8 | 1382 | 494 | 177.1 | 9845 |
| YR500-10 | 250 | 21.9 | 587 | 91.4 | 0.72 | 1.8 | 536 | 288 | 53.9 | 4884 |
| YR500-10 | 280 | 24.5 | 586 | 91.7 | 0.72 | 1.8 | 536 | 327 | 53.9 | 4961 |
| YR500-10 | 315 | 27.4 | 585 | 92.1 | 0.72 | 1.8 | 581 | 339 | 57.2 | 5038 |
| YR500-10 | 355 | 30.9 | 586 | 92.2 | 0.72 | 1.8 | 632 | 351 | 60.5 | 5148 |
| YR560-10 | 400 | 33.8 | 586 | 92.4 | 0.74 | 1.8 | 690 | 359 | 63.8 | 5258 |
| YR560-10 | 450 | 37.3 | 589 | 92.8 | 0.75 | 1.8 | 701 | 397 | 101.2 | 6644 |
| YR560-10 | 500 | 41.4 | 590 | 93.0 | 0.75 | 1.8 | 775 | 396 | 107.8 | 6908 |
| YR560-10 | 560 | 45.6 | 588 | 93.2 | 0.76 | 1.8 | 774 | 449 | 107.8 | 7172 |
| YR560-10 | 630 | 51.2 | 589 | 93.4 | 0.76 | 1.8 | 868 | 447 | 117.7 | 7403 |
| YR630-10 | 710 | 56.1 | 590 | 93.7 | 0.78 | 1.8 | 889 | 499 | 172.7 | 8800 |
| YR630-10 | 800 | 63.1 | 591 | 93.8 | 0.78 | 1.8 | 1011 | 488 | 184.8 | 9328 |
| YR630-10 | 900 | 70.9 | 591 | 93.9 | 0.78 | 1.8 | 1086 | 511 | 194.7 | 9493 |
| YR630-10 | 1000 | 78.7 | 591 | 94.1 | 0.78 | 1.8 | 1179 | 524 | 212.3 | 9812 |
| YR560-12 | 280 | 25 | 489 | 91.4 | 0.72 | 1.8 | 583 | 299 | 96.8 | 6545 |
| YR560-12 | 315 | 27.6 | 489 | 91.5 | 0.72 | 1.8 | 635 | 308 | 104.5 | 6611 |
| YR560-12 | 355 | 31.1 | 489 | 91.6 | 0.72 | 1.8 | 699 | 315 | 114.4 | 6875 |
| YR560-12 | 400 | 34.9 | 490 | 91.8 | 0.72 | 1.8 | 773 | 319 | 121.0 | 7150 |
| YR560-12 | 450 | 39.1 | 490 | 92.2 | 0.72 | 1.8 | 867 | 318 | 133.1 | 7370 |
| YR630-12 | 500 | 42.8 | 491 | 92.4 | 0.73 | 1.8 | 774 | 398 | 172.7 | 8745 |
| YR630-12 | 560 | 47.1 | 491 | 92.8 | 0.74 | 1.8 | 821 | 423 | 183.7 | 9295 |
| YR630-12 | 630 | 52.8 | 491 | 93.1 | 0.74 | 1.8 | 927 | 418 | 201.3 | 9460 |
| YR630-12 | 710 | 59.3 | 491 | 93.4 | 0.74 | 1.8 | 994 | 441 | 215.6 | 9790 |
| 型号 | 额定功率 kw | 额定电流 A | 额定负载下 | 同步转速 r/min | 最大转矩额定转矩(标准值) | 重量 kg | |
| 效率% | 功率因素cosφ | ||||||
| YR710-4 | 2500 | 178 | 95.6 | 0.85 | 1500 | 1.8 | 12000 |
| YR7104 | 2800 | 199 | 95.6 | 0.85 | 1500 | 1.8 | 12500 |
| YR710-4 | 3150 | 224 | 95.7 | 0.85 | 1500 | 1.8 | 13000 |
| YR710-4 | 3550 | 252 | 95.8 | 0.85 | 1500 | 1.8 | 13500 |
| YR800-4 | 4000 | 281 | 95.9 | 0.86 | 1500 | 1.8 | 14500 |
| YR800-4 | 4500 | 315 | 96.0 | 0.86 | 1500 | 1.8 | 15000 |
| YR800-4 | 5000 | 350 | 96.1 | 0.86 | 1500 | 1.8 | 15500 |
| YR800-4 | 5600 | 391 | 96.2 | 0.86 | 1500 | 1.8 | 16000 |
| YR710-6 | 2000 | 164 | 95.4 | 0.83 | 1000 | 1.8 | 12500 |
| YR710-6 | 2240 | 162 | 95.4 | 0.83 | 1000 | 1.8 | 13000 |
| YR710-6 | 2500 | 164 | 95.5 | 0.83 | 1000 | 1.8 | 13500 |
| YR800-6 | 2800 | 202 | 95.5 | 0.84 | 1000 | 1.8 | 14500 |
| YR800-6 | 3150 | 227 | 95.4 | 0.84 | 1000 | 1.8 | 15000 |
| YR800-6 | 3550 | 255 | 95.7 | 0.84 | 1000 | 1.8 | 16000 |
| YR900-6 | 4000 | 287 | 95.8 | 0.84 | 1000 | 1.8 | 17500 |
| YR900-6 | 4500 | 323 | 95.9 | 0.84 | 1000 | 1.8 | 18500 |
| YR900-6 | 5000 | 358 | 96.0 | 0.84 | 1000 | 1.8 | 19000 |
| YR710-8 | 1400 | 106 | 94.5 | 0.81 | 750 | 1.8 | 12500 |
| YR710-8 | 1600 | 116 | 94.6 | 0.81 | 750 | 1.8 | 13000 |
| YR710-8 | 1800 | 136 | 94.7 | 0.81 | 750 | 1.8 | 13500 |
| YR710-8 | 2000 | 150 | 94.8 | 0.81 | 750 | 1.8 | 14500 |
| YR800-8 | 2240 | 167 | 94.9 | 0.82 | 750 | 1.8 | 15000 |
| YR800-8 | 2500 | 186 | 95.0 | 0.82 | 750 | 1.8 | 15500 |
| YR800-8 | 2800 | 205 | 95.1 | 0.82 | 750 | 1.8 | 16000 |
| YR900-8 | 3150 | 233 | 95.2 | 0.82 | 750 | 1.8 | 18000 |
| YR900-8 | 3550 | 260 | 95.3 | 0.83 | 750 | 1.8 | 19000 |
| YR1000-8 | 4000 | 292 | 95.4 | 0.83 | 750 | 1.8 | 21000 |
| YR1000-8 | 4500 | 328 | 95.5 | 0.83 | 750 | 1.8 | 22000 |
| YR1000-8 | 5000 | 364 | 95.6 | 0.83 | 750 | 1.8 | 23000 |
| YR710-10 | 1120 | 89 | 94.1 | 0.79 | 600 | 1.8 | 12000 |
| YR710-10 | 1250 | 97 | 94.2 | 0.79 | 600 | 1.8 | 12500 |
| YR710-10 | 1400 | 109 | 94.3 | 0.79 | 600 | 1.8 | 13000 |
| YR710-10 | 1600 | 124 | 94.3 | 0.79 | 600 | 1.8 | 13500 |
| YR800-10 | 1800 | 136 | 94.5 | 0.80 | 600 | 1.8 | 14000 |
| YR800-10 | 2000 | 151 | 94.6 | 0.80 | 600 | 1.8 | 15000 |
| YR800-10 | 2240 | 168 | 94.7 | 0.80 | 600 | 1.8 | 16000 |
| YR900-10 | 2500 | 191 | 94.6 | 0.80 | 600 | 1.8 | 18000 |
| YR900-10 | 2800 | 214 | 94.7 | 0.80 | 600 | 1.8 | 19000 |
| YR1000-10 | 3150 | 237 | 94.8 | 0.81 | 600 | 1.8 | 22000 |
| YR1000-10 | 3550 | 267 | 94.9 | 0.81 | 600 | 1.8 | 23000 |
| YR710-12 | 900 | 76 | 93.2 | 0.74 | 500 | 1.8 | 12500 |
| YR710-12 | 1000 | 84 | 93.3 | 0.74 | 500 | 1.8 | 13000 |
| YR710-12 | 1120 | 94 | 93.4 | 0.74 | 500 | 1.8 | 13500 |
| YR800-12 | 1250 | 103 | 93.5 | 0.75 | 500 | 1.8 | 14000 |
| YR800-12 | 1450 | 116 | 93.6 | 0.75 | 500 | 1.8 | 15000 |
| YR800-12 | 1600 | 132 | 93.7 | 0.75 | 500 | 1.8 | 16000 |
| YR900-12 | 1600 | 130 | 93.8 | 0.76 | 500 | 1.8 | 17000 |
| YR900-12 | 1800 | 146 | 93.9 | 0.76 | 500 | 1.8 | 17500 |
| YR900-12 | 2000 | 162 | 94.0 | 0.76 | 500 | 1.8 | 18500 |
| YR900-12 | 2240 | 169 | 94.1 | 0.76 | 500 | 1.8 | 19000 |
| YR1000-12 | 2500 | 199 | 94.2 | 0.78 | 500 | 1.8 | 21000 |
| YR1000-12 | 2800 | 223 | 94.3 | 0.78 | 500 | 1.8 | 22000 |
| YR1000-12 | 3150 | 247 | 94.4 | 0.78 | 500 | 1.8 | 23000 |
| YR1000-12 | 3550 | 278 | 94.5 | 0.78 | 500 | 1.8 | 24000 |
