YL 立式异步电动机 概述
YL系列高压立式三相异步电动机(中心高355-630) 是我公司采用国内外先进技术、结合我公司生产高压电动机的实践经验而建立的优化系列产品，是JSL老系列高压电动机的更新换代产品。
本系列产品用料考究，制造精良， 具有力能指标高，噪音及振动小， 可靠性高， 使用安装、维修方便等优点。
本系列电动机的功率等级、安装尺寸、电气性能均符合GB/T4772.1-2-1999《旋转电机尺寸和输出功率等级》、GB755-2000《旋转电机定额与性能》标准
本系列电动机的各部分机械尺寸、公差符合国家标准GB/T1800~GB/T1804 《极限与配合》和国际标准化委员会ISO标准。
本系列电动机的外壳防护等级根据GB/T4942.1-2001《旋转电机外壳防护分级 (IP代码)》有IP23，如果用户要求其他防护等级如IP45或IP54等可另行协商。
本系列电动机的冷却方法根据GB/T1993-1993和IEC60034-5《旋转电机冷却方法》的标准为IC01。如果用户要求其他冷却方法可另外协商。
本系列电动机基本安装方法为立式带凸缘(IMV1)结构，符合GB/T997-2003和IEC60034-7《旋转电机结构及安装型式(IM代号)》的规定。
YL 立式异步电动机 结构说明
电动机采用箱式结构。机座用钢板焊成的箱型结构，重量轻，刚度好。机座两侧面有窗孔，可以装盖板，亦可拆下盖板后观察及触及电机内部， 便利电机的维护和修理。
定子采用滑入式外装压结构。定子绕组采用F级少胶绝缘材料，端部有可靠的固定及绑扎， 并采用真空压力浸渍无溶剂源工艺(VPI)处理， 因此电动机的绝缘性能优良可靠， 机械强度好， 防潮性能强。
鼠笼式转子子采用先进可靠的焊接工艺，并经槽内紧固工艺处理。
轴承有滚动轴承形式。轴承防护等级为IP44，轴承的防护等级也可按需要提高为IP54。
主出线盒为IP54防护等级，主出线盒内、外均有单独的接地端子。
YL 立式异步电动机 用途
电动机可用于驱动立式水泵等立式机械，但不承担除电机转子重量以外的附加轴向力。
YL 立式异步电动机 电动机的起动
1、用户的电网应保证电动机在启动过程中的电动机电压不低于额定电压的85。
2、被传动机械的阻力矩特性为水泵、鼓风机类阻力矩特性。
在上述条件下，电动机允许在实际冷态下连续起动两次， 或者在电机热状态下起动一次，电机在两次起动之间为自然停车，额外的再次起动应在停车4小时以后。
如果需要电动机传动的机械为非水泵类立式机械，务请事先和制造厂联系协商， 以便特殊设计和保障电动机的可靠运行。
YL 立式异步电动机 技术数据
1、YL系列6KV立式异步电动机技术数据(保证值)见 表1
| 型号 | 额定功率(KW) | 额定电流(A) | 额定转速 (r/min ) | 效率（%） | 功率因数 cosΦ | 最大转矩/额定转矩 | 堵转转矩/额定转矩 | 堵转电流/额定电流 | 转动惯量J电机 kg. m² | 转动惯量J负载 kg. m² |
| YL355-4 | 185 | 22.8 | 1477 | 93.1 | 0.84 | 1.8 | 0.8 | 6.5 | 5 | 64.0 |
| YL355-4 | 200 | 24.6 | 1477 | 93.2 | 0.84 | 1.8 | 0.8 | 6.5 | 5.2 | 70 |
| YL355-4 | 220 | 26.7 | 1477 | 93.3 | 0.85 | 1.8 | 0.8 | 6.5 | 5.5 | 76 |
| YL355-4 | 250 | 30.3 | 1478 | 93.4 | 0.85 | 2 | 0.8 | 6.5 | 6 | 82 |
| YL355-4 | 280 | 33.5 | 1478 | 93.5 | 0.86 | 1.8 | 0.8 | 6.5 | 6 | 95 |
| YL355-4 | 315 | 37.7 | 1478 | 93.6 | 0.06 | 1.8 | 0.8 | 6.5 | 8 | 106 |
| YL400-4 | 355 | 42.3 | 1485 | 93.8 | 0.86 | 1.8 | 0.8 | 6.5 | 13 | 88 |
| YL400-4 | 400 | 47.6 | 1486 | 94.0 | 0.84 | 1.8 | 0.8 | 6.5 | 14 | 98 |
| YL400-4 | 450 | 53.5 | 1485 | 94.2 | 0.86 | 1.8 | 0.8 | 6.5 | 15 | 108 |
| YL400-4 | 500 | 58.6 | 1485 | 943.0 | 0.87 | 1.8 | 0.8 | 6.5 | 17 | 119 |
| YL400-4 | 560 | 65.5 | 1485 | 94.5 | 0.87 | 1.8 | 0.8 | 6.5 | 18 | 131 |
| YL450-4 | 630 | 73.5 | 1485 | 94.8 | 0.87 | 1.8 | 0.8 | 6.5 | 19 | 145 |
| YL450-4 | 710 | 82.7 | 1485 | 95.0 | 0.87 | 1.8 | 0.8 | 6.5 | 21 | 181 |
| YL450-4 | 800 | 93.0 | 1486 | 95.1 | 0.87 | 1.8 | 0.8 | 6.5 | 22 | 178 |
| YL450-4 | 900 | 104.6 | 1487 | 95.2 | 0.87 | 1.8 | 0.8 | 6.5 | 24 | 197 |
| YL500-4 | 1000 | 116.1 | 1485 | 95.3 | 0.87 | 2 | 0.7 | 8.5 | 29 | 214 |
| YL500-4 | 1120 | 128.4 | 1485 | 95.4 | 0.88 | 1.8 | 0.7 | 6.5 | 31 | 235 |
| YL500-4 | 1250 | 143.1 | 1485 | 95.5 | 0.88 | 1.8 | 0.7 | 6.5 | 35 | 256 |
| YL500-4 | 1400 | 160.1 | 1484 | 95.6 | 0.88 | 1.8 | 0.7 | 6.5 | 37 | 280 |
| YL560-4 | 1000 | 180.8 | 1480 | 95.7 | 0.89 | 1.8 | 0.6 | 6.5 | 57 | 310 |
| YL560-4 | 1800 | 203.1 | 1488 | 95.8 | 0.89 | 1.8 | 0.6 | 6.5 | 61 | 240 |
| YL560-4 | 2000 | 225.5 | 1488 | 95.9 | 0.89 | 1.8 | 0.6 | 6.5 | 68 | 167 |
| YL630-4 | 2240 | 252.3 | 1408 | 96.0 | 0.89 | 1.8 | 0.6 | 6.5 | 107 | 397 |
| YL630-4 | 2500 | 281.3 | 1488 | 96.1 | 0.89 | 1.8 | 0.6 | 8.5 | 113 | 427 |
| YL630-4 | 2800 | 314.7 | 1488 | 96.2 | 0.89 | 1.0 | 0.6 | 6.5 | 5.5 | 462 |
| YL355-6 | 185 | 23.7 | 987 | 92.6 | 0.81 | 1.8 | 0.8 | 6.0 | 10 | 167 |
| YL355-6 | 200 | 25.6 | 987 | 92.8 | 0.81 | 1.8 | 0.8 | 6.0 | 10 | 187 |
| YL355-6 | 220 | 27.8 | 987 | 03.0 | 0.82 | 1.8 | 0.8 | 6.0 | 11 | 209 |
| YL355-6 | 250 | 31.4 | 987 | 93.3 | 0.82 | 1.8 | 0.8 | 6.0 | 11 | 234 |
| YL400-6 | 280 | 34.7 | 988 | 93.5 | 0.83 | 1.8 | 0.8 | 6.0 | 18 | 259 |
| YL400-6 | 315 | 39.0 | 988 | 93.7 | 0.83 | 1.8 | 0.8 | 0.0 | 19 | 288 |
| YL400-6 | 355 | 43.8 | 988 | 93.9 | 0.83 | 1.8 | 0.8 | 6.0 | 20 | 321 |
| YL400-6 | 400 | 49.3 | 988 | 94.0 | 0.83 | 1.8 | 0.8 | 6.0 | 21 | 358 |
| YL450-6 | 450 | 24.7 | 984 | 94.3 | 0.84 | 1.8 | 0.8 | 6.0 | 28 | 197 |
| YL450-6 | 500 | 59.9 | 944 | 94.5 | 0.85 | 1.8 | 0.8 | 6.0 | 30 | 436 |
| YL450-6 | 560 | 66.9 | 988 | 94.7 | 0.85 | 1.8 | 0.8 | 6.0 | 31 | 484 |
| YL450-6 | 630 | 75.2 | 989 | 94.8 | 0.85 | 1.8 | 0.8 | 6.0 | 33 | 535 |
| YL500-6 | 710 | 84.6 | 990 | 95.0 | 0.85 | 1.8 | 0.7 | 6.0 | 43 | 595 |
| YL500-6 | 800 | 95.3 | 989 | 95.1 | 0.85 | 1.8 | 0.7 | 6.0 | 44 | 660 |
| YL500-6 | 900 | 107.0 | 989 | 95.2 | 0.85 | 1.8 | 0.7 | 6.0 | 50 | 730 |
| YL500-6 | 1000 | 118.8 | 989 | 95.3 | 0.85 | 1.8 | 0.7 | 8.0 | 52 | 709 |
| YL560-6 | 1120 | 131.4 | 990 | 95.4 | 0.86 | 1.8 | 0.7 | 6.5 | 69 | 731 |
| YL560-6 | 1250 | 146.5 | 990 | 95.5 | 0.86 | 1.8 | 0.7 | 6.5 | 77 | 790 |
| YL560-6 | 1400 | 163.9 | 990 | 95.6 | 0.86 | 1.8 | 0.7 | 6.5 | 82 | 868 |
| YL630-6 | 1600 | 187.1 | 991 | 95.7 | 0.86 | 1.8 | 0.7 | 6.5 | 125 | 935 |
| YL630-6 | 1800 | 210.2 | 991 | 95.8 | 0.86 | 1.8 | 0.7 | 6.5 | 134 | 1038 |
| YL630-6 | 2000 | 233.3 | 991 | 95.9 | 0.86 | 1.8 | 0.7 | 6.5 | 143 | 1129 |
| YL400-8 | 185 | 25.0 | 741 | 92.6 | 0.77 | 1.8 | 0.8 | 5.5 | 18 | 382 |
| YL400-8 | 200 | 26.6 | 741 | 92.8 | 0.78 | 1.8 | 0.8 | 5.5 | 20 | 401 |
| YL400-8 | 220 | 29.2 | 741 | 92.9 | 0.78 | 1.8 | 0.8 | 5.5 | 22 | 421 |
| YL400-8 | 250 | 32.7 | 741 | 93.0 | 0.79 | 1.8 | 0.8 | 5.5 | 23 | 474 |
| YL400-8 | 280 | 36.6 | 741 | 93.2 | 0.79 | 1.8 | 0.8 | 5.5 | 24 | 526 |
| YL450-8 | 315 | 40.6 | 742 | 93.4 | 0.80 | 1.8 | 0.8 | 5.5 | 30 | 585 |
| YL450-8 | 355 | 45.7 | 742 | 93.5 | 0.8 | 1.8 | 0.8 | 5.5 | 32 | 652 |
| YL450-8 | 400 | 51.3 | 742 | 93.7 | 0.80 | 1.8 | 0.8 | 5.5 | 34 | 727 |
| YL450-8 | 450 | 57.0 | 742 | 93.8 | 0.81 | 1.8 | 0.8 | 5.5 | 37 | 809 |
| YL500-8 | 500 | 63.0 | 742 | 94.3 | 0.81 | 1.8 | 0.8 | 5.5 | 47 | 889 |
| YL500-8 | 560 | 69.6 | 742 | 94.4 | 0.82 | 1.8 | 0.8 | 5.5 | 50 | 983 |
| YL500-8 | 630 | 78.2 | 743 | 94.5 | 0.82 | 1.8 | 0.8 | 5.5 | 55 | 1095 |
| YL500-8 | 710 | 88.1 | 744 | 94.6 | 0.82 | 1.8 | 0.8 | 5.5 | 58 | 1215 |
| YL560-8 | 800 | 96.8 | 743 | 94.7 | 0.84 | 1.8 | 0.7 | 6.0 | 88 | 1352 |
| YL560-8 | 900 | 108.8 | 743 | 94.8 | 0.84 | 1.8 | 0.7 | 6.0 | 97 | 1501 |
| YL560-8 | 1000 | 120.7 | 743 | 94.9 | 0.84 | 1.8 | 0.7 | 6.0 | 103 | 1601 |
| YL630-8 | 1120 | 135.1 | 744 | 95.0 | 0.84 | 1.8 | 0.7 | 6.0 | 136 | 1808 |
| YL630-8 | 1250 | 150.6 | 744 | 95.1 | 0.84 | 1.8 | 0.7 | 6.0 | 143 | 1987 |
| YL630-8 | 1400 | 168.5 | 744 | 95.2 | 0.84 | 1.8 | 0.7 | 6.0 | 156 | 2190 |
| YL630-8 | 1600 | 192.3 | 744 | 95.3 | 0.84 | 1.8 | 0.7 | 6.0 | 167 | 2455 |
| YL400-10 | 185 | 25.9 | 593 | 91.7 | 0.75 | 1.8 | 0.8 | 5.5 | 28 | 572 |
| YL400-10 | 200 | 27.9 | 593 | 91.9 | 0.75 | 1.8 | 0.8 | 5.5 | 29 | 644 |
| YL450-10 | 220 | 29.9 | 592 | 92.1 | 0.77 | 2 | 0.8 | 5.5 | 30 | 725 |
| YL450-10 | 250 | 33.4 | 592 | 92.3 | 0.78 | 2 | 0.8 | 5.5 | 31 | 816 |
| YL450-10 | 280 | 37.3 | 592 | 92.5 | 0.78 | 1.8 | 0.8 | 5.5 | 33 | 906 |
| YL450-10 | 315 | 41.4 | 592 | 92.6 | 0.79 | 1.8 | 0.8 | 5.5 | 35 | 1007 |
| YL450-10 | 355 | 46.6 | 592 | 92.8 | 0.79 | 1.8 | 0.8 | 5.5 | 39 | 1126 |
| YL500-10 | 400 | 51.6 | 592 | 93.3 | 0.80 | 1.8 | 0.8 | 5.5 | 55 | 1255 |
| YL500-10 | 450 | 58.0 | 593 | 93.4 | 0.80 | 1.8 | 0.8 | 5.5 | 57 | 1395 |
| YL500-10 | 500 | 64.3 | 594 | 93.6 | 0.80 | 1.8 | 0.8 | 5.5 | 64 | 1534 |
| YL500-10 | 560 | 71.9 | 594 | 93.7 | 0.8 | 1.8 | 0.8 | 5.5 | 69 | 1896 |
| YL500-10 | 630 | 80.8 | 595 | 93.1 | 0.80 | 1.8 | 0.8 | 6.5 | 73 | 10.2 |
| YL560-10 | 710 | 88.6 | 593 | 94.0 | 0.82 | 1.8 | 0.7 | 6.0 | 107 | 2110 |
| YL560-10 | 800 | 99.7 | 593 | 04.2 | 0.82 | 1.8 | 0.7 | 6.0 | 113 | 2340 |
| YL560-10 | 900 | 112.0 | 593 | 94.3 | 0.82 | 1.8 | 0.7 | 6.0 | 123 | 2598 |
| YL630-10 | 1000 | 124.3 | 594 | 94.4 | 0.82 | 1.8 | 0.7 | 6.0 | 152 | 2856 |
| YL630-10 | 1120 | 138.9 | 594 | 94.6 | 0.82 | 1.8 | 0.7 | 6.0 | 102 | 3155 |
| YL630-10 | 1250 | 154.7 | 594 | 94.8 | 0.82 | 1.8 | 0.7 | 6.0 | 177 | 3473 |
| YL630-10 | 1400 | 173.1 | 594 | 94.9 | 0.82 | 1.8 | 0.7 | 6.0 | 194 | 3832 |
| YL450-12 | 185 | 27.2 | 494 | 90.9 | 0.72 | 1.8 | 0.8 | 5.5 | 38 | 938 |
| YL450-12 | 200 | 29.3 | 494 | 91.1 | 0.72 | 1.8 | 0.8 | 5.5 | 40 | 1028 |
| YL450-12 | 220 | 31.7 | 494 | 91.4 | 0.73 | 1.8 | 0.8 | 5.5 | 42 | 1127 |
| YL450-12 | 250 | 35.9 | 494 | 91.7 | 0.73 | 1.8 | 0.8 | 5.5 | 44 | 1236 |
| YL500-12 | 280 | 39.3 | 493 | 92.7 | 0.74 | 1.8 | 0.8 | 5.5 | 52 | 1416 |
| YL500-12 | 315 | 43.6 | 493 | 92.0 | 0.75 | 1.8 | 0.8 | 5.5 | 56 | 1575 |
| YL500-12 | 355 | 49.0 | 494 | 93.0 | 0.75 | 1.8 | 0.8 | 5.5 | 61 | 1755 |
| YL500-12 | 400 | 55.0 | 494 | 93.3 | 0.75 | 1.8 | 0.8 | 5.5 | 66 | 1964 |
| YL500-12 | 450 | 61.8 | 495 | 93.4 | 0.75 | 1.8 | 0.8 | 5.5 | 74 | 2184 |
| YL560-12 | 500 | 65.0 | 495 | 93.7 | 0.79 | 1.8 | 0.7 | 8.0 | 104 | 2400 |
| YL560-12 | 560 | 72.7 | 495 | 93.8 | 0.79 | 1.8 | 0.7 | 6.0 | 116 | 2660 |
| YL560-12 | 630 | 81.7 | 495 | 93.0 | 0.79 | 1.8 | 0.7 | 6.0 | 122 | 2960 |
| YL630-12 | 710 | 92.0 | 495 | 94.0 | 0.79 | 1.8 | 0.7 | 6.0 | 174 | 3295 |
| YL630-12 | 800 | 103.4 | 495 | 94.2 | 0.79 | 1.8 | 0.7 | 6.0 | 186 | 3673 |
| YL000-12 | 900 | 116.2 | 495 | 94.3 | 0.79 | 1.8 | 0.7 | 6.0 | 204 | 4000 |
| YL630-12 | 1000 | 129.0 | 495 | 94.4 | 0.79 | 1.8 | 0.7 | 6.0 | 218 | 4530 |
2、YL系列10kV立式异步电动机技术数据(保证值)见 表2
| 型号 | 额定功率(kW) | 额定电流(A) | 额定转速 (r/min) | 效率(%) | 功率因数 cosφ | 最大转矩 额定转矩 Mmax/Mn | 堵转矩/ 额定转矩Mst/Mn | 堵转电流/额定电流 | 转动惯量/J电机 kg. m2 | 转动惯量/J负载 kg.m2 |
| Y450-2 | 355 | 25.1 | 2076 | 93.8 | 0.87 | 1.8 | 0.6 | 7 | 6.05 | 11.4 |
| Y450-2 | 400 | 20.2 | 2978 | 94.1 | 0.87 | 1.8 | 0.6 | 7 | 12.1 | 16.0 |
| Y450-2 | 450 | 31.7 | 2976 | 94.2 | 0.87 | 1.8 | 0.6 | 7 | 12.1 | 18.7 |
| Y450-2 | 500 | 35.2 | 2977 | 94.4 | 0.87 | 1.8 | 0.6 | 7 | 12.65 | 19.0 |
| Y450-2 | 560 | 39.3 | 2977 | 94.5 | 0.87 | 1.8 | 0.6 | 7 | 13.2 | 19.8 |
| Y450-2 | 400 | 44.2 | 2989 | 94.6 | 0.87 | 1.8 | 0.6 | 7 | 20.9 | 20.2 |
| Y500-2 | 710 | 49.2 | 2989 | 94.7 | 0.88 | 1.8 | 0.6 | 7 | 22.0 | 21.0 |
| Y500-2 | 300 | 55.4 | 2987 | 94.8 | 0.88 | 1.8 | 0.6 | 7 | 23.1 | 22.9 |
| Y500-2 | 900 | 62.2 | 2987 | 94.9 | 0.88 | 1.8 | 0.6 | 7 | 24.2 | 24.3 |
| Y500-2 | 1000 | 69.1 | 2985 | 95.0 | 0.88 | 1.8 | 0.6 | 7 | 31.9 | 25.1 |
| Y500-2 | 1120 | 77.2 | 2986 | 95.2 | 0.88 | 1.8 | 0.6 | 7 | 34.1 | 27.9 |
| Y560-2 | 1250 | 85.0 | 2986 | 95.4 | 0.89 | 1.8 | 0.6 | 7 | 37.4 | 32.6 |
| Y560-2 | 1400 | 95.1 | 2988 | 95.5 | 0.89 | 1.8 | 0.6 | 7 | 39.6 | 35.4 |
| Y560-2 | 1600 | 108.6 | 2985 | 95.6 | 0.89 | 1.8 | 0.6 | 7 | 45.1 | 50.9 |
| Y630-2 | 1800 | 120.7 | 2987 | 95.7 | 0.9 | 1.8 | 0.6 | 7 | 50.6 | 54.4 |
| Y630-2 | 2000 | 134.0 | 2985 | 95.8 | 0.9 | 1.8 | 0.6 | 7 | 53.9 | 61.1 |
| Y630-2 | 2240 | 149.7 | 2987 | 96.0 | 0.9 | 1.8 | 0.6 | 7 | 57.2 | 67.8 |
| Y450-4 | 355 | 25.5 | 1486 | 93.3 | 0.86 | 1.8 | 0.7 | 7 | 16.5 | 88.5 |
| Y450-4 | 400 | 28.7 | 1487 | 93.5 | 0.86 | 1.8 | 0.7 | 7 | 16.5 | 93.5 |
| Y450-4 | 450 | 32.2 | 1485 | 93.9 | 0.86 | 1.8 | 0.7 | 7 | 17.6 | 103.4 |
| Y450-4 | 500 | 35.7 | 1486 | 94 | 0.86 | 1.8 | 0.7 | 7 | 18.7 | 104.3 |
| Y450-4 | 560 | 39.9 | 1489 | 94.2 | 0.86 | 1.8 | 0.7 | 7 | 27.5 | 117.5 |
| Y450-4 | 630 | 44.8 | 1490 | 94.4 | 1.86 | 1.8 | 0.7 | 7 | 27.5 | 131.5 |
| Y500-4 | 710 | 49.6 | 1490 | 95 | 0.87 | 1.8 | 0.7 | 7 | 30.8 | 139.2 |
| Y500-4 | 800 | 55.8 | 1489 | 95.1 | 0.87 | 1.8 | 0.7 | 7 | 30.8 | 149.2 |
| Y500-4 | 900 | 62.0 | 1489 | 95.2 | 0.88 | 1.8 | 0.7 | 7 | 33 | 172.0 |
| Y500-4 | 1000 | 68.8 | 1489 | 95.3 | 0.88 | 1.8 | 0.7 | 7 | 47.3 | 185.7 |
| Y500-4 | 1120 | 77.0 | 1490 | 95.4 | 0.88 | 1.8 | 0.7 | 7 | 50.6 | 210.4 |
| Y560-4 | 1250 | 84.9 | 1489 | 95.5 | 0.88 | 1.8 | 0.7 | 7 | 50.6 | 250.4 |
| Y560-4 | 1400 | 94.9 | 1490 | 95.7 | 0.89 | 1.8 | 0.7 | 7 | 59.4 | 279.6 |
| Y560-4 | 1600 | 108.3 | 1493 | 95.8 | 0.89 | 1.8 | 0.7 | 7 | 97.9 | 331.1 |
| Y630-4 | 1800 | 121.8 | 1492 | 95.9 | 0.89 | 1.8 | 0.6 | 7 | 97.9 | 376.1 |
| Y630-4 | 2000 | 135.2 | 1493 | 96.0 | 0.89 | 1.8 | 0.6 | 7 | 103.4 | 420.6 |
| Y630-4 | 2240 | 151.2 | 1493 | 96.1 | 0.89 | 1.8 | 0.6 | 7 | 114.4 | 449.6 |
| Y450-6 | 315 | 23.9 | 991 | 92.8 | 0.82 | 1.8 | 0.7 | 6 | 24.2 | 236.8 |
| Y450-6 | 355 | 26.5 | 991 | 93.1 | 0.83 | 1.8 | 0.7 | 6 | 37.4 | 241.6 |
| Y450-6 | 400 | 29.8 | 991 | 93.3 | 0.83 | 1.8 | 0.7 | 6 | 40.7 | 276.3 |
| Y450-6 | 450 | 33.5 | 902 | 93.6 | 0.83 | 1.8 | 0.7 | 6 | 44 | 325.0 |
| Y500-6 | 500 | 37.0 | 990 | 93.9 | 0.83 | 1.8 | 0.7 | 6 | 44 | 295.0 |
| Y500-6 | 560 | 40.9 | 991 | 94.1 | 0.84 | 1.8 | 0.7 | 6 | 47.3 | 326.7 |
| Y500-6 | 630 | 45.9 | 991 | 94.4 | 0.84 | 1.8 | 0.7 | 6 | 50.6 | 370.4 |
| Y500-6 | 710 | 51.6 | 993 | 94.6 | 0.84 | 1.8 | 0.7 | 6 | 64.9 | 414.1 |
| Y500-6 | 800 | 58.4 | 993 | 94.7 | 0.84 | 1.8 | 0.7 | 6 | 75.9 | 453.1 |
| Y560-6 | 900 | 54.4 | 994 | 94.9 | 0.85 | 1.8 | 0.7 | 6 | 80.3 | 492.7 |
| Y560-6 | 1000 | 71.4 | 993 | 95.1 | 0.85 | 1.5 | 0.7 | 6 | 80.3 | 532.7 |
| Y560-6 | 1120 | 79.8 | 995 | 95.3 | 0.85 | 1.8 | 0.7 | 6 | 113.3 | 570.7 |
| V560-6 | 1250 | 88.0 | 995 | 95.4 | 0.86 | 1.8 | 0.7 | 6 | 124.3 | 610.7 |
| Y630-6 | 1400 | 98.2 | 995 | 95.7 | 0.86 | 1.8 | 0.6 | 6 | 133.1 | 680.9 |
| Y600-6 | 1600 | 112.1 | 995 | 95.8 | 0.86 | 1.8 | 0.6 | 6 | 147.4 | 967.6 |
| Y630-6 | 1800 | 126.0 | 995 | 95.9 | 0.86 | 1.8 | 0.6 | 6 | 154.6 | 1085.9 |
| Y500-8 | 315 | 25.5 | 739 | 92.8 | 0.77 | 1.8 | 0.7 | 6 | 47.3 | 411.7 |
| Y500-8 | 355 | 28.6 | 739 | 93.1 | 0.77 | 1.8 | 0.7 | 6 | 49.5 | 440.5 |
| Y500-8 | 400 | 31.8 | 738 | 93.2 | 0.78 | 1.8 | 0.7 | 6 | 49.5 | 475.5 |
| Y500-8 | 450 | 35.7 | 738 | 93.4 | 0.78 | 1.8 | 0.7 | 6 | 55 | 505 |
| Y500-8 | 500 | 39.0 | 739 | 93.8 | 0.79 | 1.8 | 0.7 | 6 | 58.3 | 534.7 |
| Y500-8 | 560 | 43.6 | 744 | 93.9 | 0.79 | 1.8 | 0.7 | 6 | 85.8 | 552.2 |
| Y560-8 | 630 | 47.0 | 743 | 94.4 | 0.82 | 1.8 | 0.7 | 6 | 91.3 | 611.7 |
| Y560-8 | 710 | 52.8 | 743 | 94.6 | 0.82 | 1.8 | 0.7 | 6 | 99 | 701 |
| Y560-8 | 800 | 59.5 | 744 | 94.7 | 0.82 | 1.8 | 0.7 | 6 | 99 | 791 |
| Y560-8 | 900 | 66.8 | 744 | 94.8 | 0.82 | 1.8 | 0.7 | 6 | 141.9 | 856.1 |
| Y630-8 | 1000 | 73.2 | 744 | 95.0 | 0.83 | 1.8 | 0.7 | 6 | 155.1 | 960.9 |
| Y630-8 | 1120 | 81.8 | 744 | 95.2 | 0.83 | 1.8 | 0.7 | 6 | 177.1 | 1063.9 |
| Y63048 | 1250 | 91.2 | 745 | 95.3 | 0.83 | 1.8 | 0.7 | 6 | 192.5 | 1192.5 |
| Y500-10 | 280 | 23.6 | 590 | 92.4 | 0.74 | 1.8 | 0.7 | 6 | 53.9 | 993.1 |
| Y500-10 | 315 | 26.5 | 590 | 92.6 | 0.74 | 1.8 | 0.7 | 5.5 | 57.2 | 1134.8 |
| Y500-10 | 355 | 29.4 | 590 | 92.8 | 0.75 | 1.8 | 0.7 | 5.5 | 57 | 1224.8 |
| Y500-10 | 400 | 33.1 | 590 | 93.0 | 0.75 | 1.8 | 0.7 | 5.5 | 63.8 | 1284.2 |
| Y560-10 | 450 | 36.2 | 590 | 93.2 | 0.77 | 1.8 | 0.7 | 6 | 67.1 | 1333.9 |
| Y560-10 | 500 | 40.1 | 593 | 93.4 | 0.77 | 1.8 | 0.7 | 6 | 107.8 | 1360.2 |
| Y560-10 | 560 | 44.3 | 592 | 93.5 | 0.78 | 1.8 | 0.7 | 6 | 107.8 | 1410.2 |
| Y560-10 | 630 | 49.8 | 593 | 93.7 | 0.78 | 1.8 | 0.7 | 6 | 117.7 | 1499.3 |
| Y560-10 | 710 | 56.0 | 593 | 93.9 | 0.78 | 1.8 | 0.7 | 6 | 130.9 | 1658.1 |
| Y630-10 | 800 | 61.2 | 594 | 94.3 | 0.8 | 1.8 | 0.7 | 6 | 184.8 | 2063.2 |
| Y630-10 | 900 | 68.7 | 595 | 94.5 | 0.8 | 1.8 | 0.7 | 9 | 194.7 | 2362.3 |
| 7630-10 | 1000 | 76.3 | 593 | 94.0 | 0.8 | 1.8 | 0.7 | 6 | 212.3 | 2420.7 |
| Y630-10 | 1120 | 85.4 | 593 | 94.7 | 0.8 | 1.8 | 0.7 | 6 | 224.4 | 2389.6 |
| Y560-12 | 315 | 27.0 | 494 | 92.3 | 0.73 | 1.8 | 0.7 | 6 | 104.5 | 1000.5 |
| 7560-12 | 355 | 30.4 | 494 | 92.5 | 0.73 | 1.8 | 0.7 | 6 | 114.4 | 1179.6 |
| Y560-12 | 400 | 34.1 | 494 | 92.7 | 0.73 | 1.8 | 0.7 | 6 | 121.0 | 1279.0 |
| Y560-12 | 450 | 38.3 | 494 | 92.9 | 0.73 | 1.8 | 0.7 | 6 | 133.1 | 1407.9 |
| Y560-12 | 500 | 42.4 | 493 | 93.2 | 0.73 | 1.8 | 0.7 | 6 | 133.1 | 1657.8 |
| Y630-12 | 560 | 46.7 | 492 | 93.5 | 0.74 | 1.8 | 0.7 | 6 | 183.7 | 2073.3 |
| Y630-12 | 650 | 52.5 | 493 | 93.7 | 0.74 | 1.8 | 0.7 | 6 | 201.3 | 2921.7 |
| Y630-12 | 710 | 59.0 | 493 | 93.9 | 0.74 | 1.8 | 0.7 | 6 | 215.6 | 3130.4 |
| Y630-12 | 300 | 66.2 | 492 | 94.4 | 0.74 | 1.8 | 0.7 | 6 | 227.7 | 3199.3 |

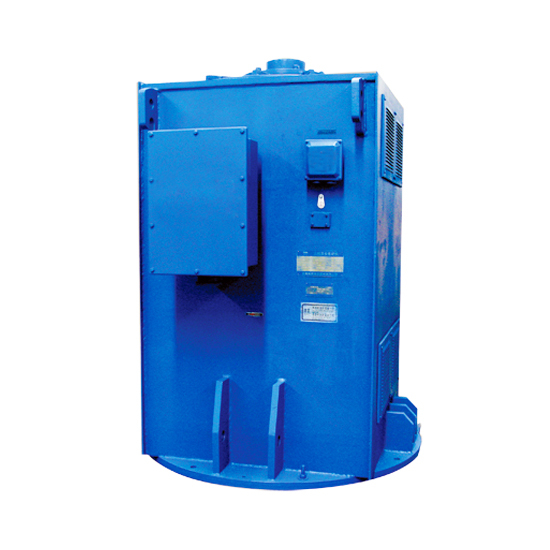

YL 立式异步电动机 概述
YL系列高压立式三相异步电动机(中心高355-630) 是我公司采用国内外先进技术、结合我公司生产高压电动机的实践经验而建立的优化系列产品，是JSL老系列高压电动机的更新换代产品。
本系列产品用料考究，制造精良， 具有力能指标高，噪音及振动小， 可靠性高， 使用安装、维修方便等优点。
本系列电动机的功率等级、安装尺寸、电气性能均符合GB/T4772.1-2-1999《旋转电机尺寸和输出功率等级》、GB755-2000《旋转电机定额与性能》标准
本系列电动机的各部分机械尺寸、公差符合国家标准GB/T1800~GB/T1804 《极限与配合》和国际标准化委员会ISO标准。
本系列电动机的外壳防护等级根据GB/T4942.1-2001《旋转电机外壳防护分级 (IP代码)》有IP23，如果用户要求其他防护等级如IP45或IP54等可另行协商。
本系列电动机的冷却方法根据GB/T1993-1993和IEC60034-5《旋转电机冷却方法》的标准为IC01。如果用户要求其他冷却方法可另外协商。
本系列电动机基本安装方法为立式带凸缘(IMV1)结构，符合GB/T997-2003和IEC60034-7《旋转电机结构及安装型式(IM代号)》的规定。
YL 立式异步电动机 结构说明
电动机采用箱式结构。机座用钢板焊成的箱型结构，重量轻，刚度好。机座两侧面有窗孔，可以装盖板，亦可拆下盖板后观察及触及电机内部， 便利电机的维护和修理。
定子采用滑入式外装压结构。定子绕组采用F级少胶绝缘材料，端部有可靠的固定及绑扎， 并采用真空压力浸渍无溶剂源工艺(VPI)处理， 因此电动机的绝缘性能优良可靠， 机械强度好， 防潮性能强。
鼠笼式转子子采用先进可靠的焊接工艺，并经槽内紧固工艺处理。
轴承有滚动轴承形式。轴承防护等级为IP44，轴承的防护等级也可按需要提高为IP54。
主出线盒为IP54防护等级，主出线盒内、外均有单独的接地端子。
YL 立式异步电动机 用途
电动机可用于驱动立式水泵等立式机械，但不承担除电机转子重量以外的附加轴向力。
YL 立式异步电动机 电动机的起动
1、用户的电网应保证电动机在启动过程中的电动机电压不低于额定电压的85。
2、被传动机械的阻力矩特性为水泵、鼓风机类阻力矩特性。
在上述条件下，电动机允许在实际冷态下连续起动两次， 或者在电机热状态下起动一次，电机在两次起动之间为自然停车，额外的再次起动应在停车4小时以后。
如果需要电动机传动的机械为非水泵类立式机械，务请事先和制造厂联系协商， 以便特殊设计和保障电动机的可靠运行。
YL 立式异步电动机 技术数据
1、YL系列6KV立式异步电动机技术数据(保证值)见 表1
| 型号 | 额定功率(KW) | 额定电流(A) | 额定转速 (r/min ) | 效率（%） | 功率因数 cosΦ | 最大转矩/额定转矩 | 堵转转矩/额定转矩 | 堵转电流/额定电流 | 转动惯量J电机 kg. m² | 转动惯量J负载 kg. m² |
| YL355-4 | 185 | 22.8 | 1477 | 93.1 | 0.84 | 1.8 | 0.8 | 6.5 | 5 | 64.0 |
| YL355-4 | 200 | 24.6 | 1477 | 93.2 | 0.84 | 1.8 | 0.8 | 6.5 | 5.2 | 70 |
| YL355-4 | 220 | 26.7 | 1477 | 93.3 | 0.85 | 1.8 | 0.8 | 6.5 | 5.5 | 76 |
| YL355-4 | 250 | 30.3 | 1478 | 93.4 | 0.85 | 2 | 0.8 | 6.5 | 6 | 82 |
| YL355-4 | 280 | 33.5 | 1478 | 93.5 | 0.86 | 1.8 | 0.8 | 6.5 | 6 | 95 |
| YL355-4 | 315 | 37.7 | 1478 | 93.6 | 0.06 | 1.8 | 0.8 | 6.5 | 8 | 106 |
| YL400-4 | 355 | 42.3 | 1485 | 93.8 | 0.86 | 1.8 | 0.8 | 6.5 | 13 | 88 |
| YL400-4 | 400 | 47.6 | 1486 | 94.0 | 0.84 | 1.8 | 0.8 | 6.5 | 14 | 98 |
| YL400-4 | 450 | 53.5 | 1485 | 94.2 | 0.86 | 1.8 | 0.8 | 6.5 | 15 | 108 |
| YL400-4 | 500 | 58.6 | 1485 | 943.0 | 0.87 | 1.8 | 0.8 | 6.5 | 17 | 119 |
| YL400-4 | 560 | 65.5 | 1485 | 94.5 | 0.87 | 1.8 | 0.8 | 6.5 | 18 | 131 |
| YL450-4 | 630 | 73.5 | 1485 | 94.8 | 0.87 | 1.8 | 0.8 | 6.5 | 19 | 145 |
| YL450-4 | 710 | 82.7 | 1485 | 95.0 | 0.87 | 1.8 | 0.8 | 6.5 | 21 | 181 |
| YL450-4 | 800 | 93.0 | 1486 | 95.1 | 0.87 | 1.8 | 0.8 | 6.5 | 22 | 178 |
| YL450-4 | 900 | 104.6 | 1487 | 95.2 | 0.87 | 1.8 | 0.8 | 6.5 | 24 | 197 |
| YL500-4 | 1000 | 116.1 | 1485 | 95.3 | 0.87 | 2 | 0.7 | 8.5 | 29 | 214 |
| YL500-4 | 1120 | 128.4 | 1485 | 95.4 | 0.88 | 1.8 | 0.7 | 6.5 | 31 | 235 |
| YL500-4 | 1250 | 143.1 | 1485 | 95.5 | 0.88 | 1.8 | 0.7 | 6.5 | 35 | 256 |
| YL500-4 | 1400 | 160.1 | 1484 | 95.6 | 0.88 | 1.8 | 0.7 | 6.5 | 37 | 280 |
| YL560-4 | 1000 | 180.8 | 1480 | 95.7 | 0.89 | 1.8 | 0.6 | 6.5 | 57 | 310 |
| YL560-4 | 1800 | 203.1 | 1488 | 95.8 | 0.89 | 1.8 | 0.6 | 6.5 | 61 | 240 |
| YL560-4 | 2000 | 225.5 | 1488 | 95.9 | 0.89 | 1.8 | 0.6 | 6.5 | 68 | 167 |
| YL630-4 | 2240 | 252.3 | 1408 | 96.0 | 0.89 | 1.8 | 0.6 | 6.5 | 107 | 397 |
| YL630-4 | 2500 | 281.3 | 1488 | 96.1 | 0.89 | 1.8 | 0.6 | 8.5 | 113 | 427 |
| YL630-4 | 2800 | 314.7 | 1488 | 96.2 | 0.89 | 1.0 | 0.6 | 6.5 | 5.5 | 462 |
| YL355-6 | 185 | 23.7 | 987 | 92.6 | 0.81 | 1.8 | 0.8 | 6.0 | 10 | 167 |
| YL355-6 | 200 | 25.6 | 987 | 92.8 | 0.81 | 1.8 | 0.8 | 6.0 | 10 | 187 |
| YL355-6 | 220 | 27.8 | 987 | 03.0 | 0.82 | 1.8 | 0.8 | 6.0 | 11 | 209 |
| YL355-6 | 250 | 31.4 | 987 | 93.3 | 0.82 | 1.8 | 0.8 | 6.0 | 11 | 234 |
| YL400-6 | 280 | 34.7 | 988 | 93.5 | 0.83 | 1.8 | 0.8 | 6.0 | 18 | 259 |
| YL400-6 | 315 | 39.0 | 988 | 93.7 | 0.83 | 1.8 | 0.8 | 0.0 | 19 | 288 |
| YL400-6 | 355 | 43.8 | 988 | 93.9 | 0.83 | 1.8 | 0.8 | 6.0 | 20 | 321 |
| YL400-6 | 400 | 49.3 | 988 | 94.0 | 0.83 | 1.8 | 0.8 | 6.0 | 21 | 358 |
| YL450-6 | 450 | 24.7 | 984 | 94.3 | 0.84 | 1.8 | 0.8 | 6.0 | 28 | 197 |
| YL450-6 | 500 | 59.9 | 944 | 94.5 | 0.85 | 1.8 | 0.8 | 6.0 | 30 | 436 |
| YL450-6 | 560 | 66.9 | 988 | 94.7 | 0.85 | 1.8 | 0.8 | 6.0 | 31 | 484 |
| YL450-6 | 630 | 75.2 | 989 | 94.8 | 0.85 | 1.8 | 0.8 | 6.0 | 33 | 535 |
| YL500-6 | 710 | 84.6 | 990 | 95.0 | 0.85 | 1.8 | 0.7 | 6.0 | 43 | 595 |
| YL500-6 | 800 | 95.3 | 989 | 95.1 | 0.85 | 1.8 | 0.7 | 6.0 | 44 | 660 |
| YL500-6 | 900 | 107.0 | 989 | 95.2 | 0.85 | 1.8 | 0.7 | 6.0 | 50 | 730 |
| YL500-6 | 1000 | 118.8 | 989 | 95.3 | 0.85 | 1.8 | 0.7 | 8.0 | 52 | 709 |
| YL560-6 | 1120 | 131.4 | 990 | 95.4 | 0.86 | 1.8 | 0.7 | 6.5 | 69 | 731 |
| YL560-6 | 1250 | 146.5 | 990 | 95.5 | 0.86 | 1.8 | 0.7 | 6.5 | 77 | 790 |
| YL560-6 | 1400 | 163.9 | 990 | 95.6 | 0.86 | 1.8 | 0.7 | 6.5 | 82 | 868 |
| YL630-6 | 1600 | 187.1 | 991 | 95.7 | 0.86 | 1.8 | 0.7 | 6.5 | 125 | 935 |
| YL630-6 | 1800 | 210.2 | 991 | 95.8 | 0.86 | 1.8 | 0.7 | 6.5 | 134 | 1038 |
| YL630-6 | 2000 | 233.3 | 991 | 95.9 | 0.86 | 1.8 | 0.7 | 6.5 | 143 | 1129 |
| YL400-8 | 185 | 25.0 | 741 | 92.6 | 0.77 | 1.8 | 0.8 | 5.5 | 18 | 382 |
| YL400-8 | 200 | 26.6 | 741 | 92.8 | 0.78 | 1.8 | 0.8 | 5.5 | 20 | 401 |
| YL400-8 | 220 | 29.2 | 741 | 92.9 | 0.78 | 1.8 | 0.8 | 5.5 | 22 | 421 |
| YL400-8 | 250 | 32.7 | 741 | 93.0 | 0.79 | 1.8 | 0.8 | 5.5 | 23 | 474 |
| YL400-8 | 280 | 36.6 | 741 | 93.2 | 0.79 | 1.8 | 0.8 | 5.5 | 24 | 526 |
| YL450-8 | 315 | 40.6 | 742 | 93.4 | 0.80 | 1.8 | 0.8 | 5.5 | 30 | 585 |
| YL450-8 | 355 | 45.7 | 742 | 93.5 | 0.8 | 1.8 | 0.8 | 5.5 | 32 | 652 |
| YL450-8 | 400 | 51.3 | 742 | 93.7 | 0.80 | 1.8 | 0.8 | 5.5 | 34 | 727 |
| YL450-8 | 450 | 57.0 | 742 | 93.8 | 0.81 | 1.8 | 0.8 | 5.5 | 37 | 809 |
| YL500-8 | 500 | 63.0 | 742 | 94.3 | 0.81 | 1.8 | 0.8 | 5.5 | 47 | 889 |
| YL500-8 | 560 | 69.6 | 742 | 94.4 | 0.82 | 1.8 | 0.8 | 5.5 | 50 | 983 |
| YL500-8 | 630 | 78.2 | 743 | 94.5 | 0.82 | 1.8 | 0.8 | 5.5 | 55 | 1095 |
| YL500-8 | 710 | 88.1 | 744 | 94.6 | 0.82 | 1.8 | 0.8 | 5.5 | 58 | 1215 |
| YL560-8 | 800 | 96.8 | 743 | 94.7 | 0.84 | 1.8 | 0.7 | 6.0 | 88 | 1352 |
| YL560-8 | 900 | 108.8 | 743 | 94.8 | 0.84 | 1.8 | 0.7 | 6.0 | 97 | 1501 |
| YL560-8 | 1000 | 120.7 | 743 | 94.9 | 0.84 | 1.8 | 0.7 | 6.0 | 103 | 1601 |
| YL630-8 | 1120 | 135.1 | 744 | 95.0 | 0.84 | 1.8 | 0.7 | 6.0 | 136 | 1808 |
| YL630-8 | 1250 | 150.6 | 744 | 95.1 | 0.84 | 1.8 | 0.7 | 6.0 | 143 | 1987 |
| YL630-8 | 1400 | 168.5 | 744 | 95.2 | 0.84 | 1.8 | 0.7 | 6.0 | 156 | 2190 |
| YL630-8 | 1600 | 192.3 | 744 | 95.3 | 0.84 | 1.8 | 0.7 | 6.0 | 167 | 2455 |
| YL400-10 | 185 | 25.9 | 593 | 91.7 | 0.75 | 1.8 | 0.8 | 5.5 | 28 | 572 |
| YL400-10 | 200 | 27.9 | 593 | 91.9 | 0.75 | 1.8 | 0.8 | 5.5 | 29 | 644 |
| YL450-10 | 220 | 29.9 | 592 | 92.1 | 0.77 | 2 | 0.8 | 5.5 | 30 | 725 |
| YL450-10 | 250 | 33.4 | 592 | 92.3 | 0.78 | 2 | 0.8 | 5.5 | 31 | 816 |
| YL450-10 | 280 | 37.3 | 592 | 92.5 | 0.78 | 1.8 | 0.8 | 5.5 | 33 | 906 |
| YL450-10 | 315 | 41.4 | 592 | 92.6 | 0.79 | 1.8 | 0.8 | 5.5 | 35 | 1007 |
| YL450-10 | 355 | 46.6 | 592 | 92.8 | 0.79 | 1.8 | 0.8 | 5.5 | 39 | 1126 |
| YL500-10 | 400 | 51.6 | 592 | 93.3 | 0.80 | 1.8 | 0.8 | 5.5 | 55 | 1255 |
| YL500-10 | 450 | 58.0 | 593 | 93.4 | 0.80 | 1.8 | 0.8 | 5.5 | 57 | 1395 |
| YL500-10 | 500 | 64.3 | 594 | 93.6 | 0.80 | 1.8 | 0.8 | 5.5 | 64 | 1534 |
| YL500-10 | 560 | 71.9 | 594 | 93.7 | 0.8 | 1.8 | 0.8 | 5.5 | 69 | 1896 |
| YL500-10 | 630 | 80.8 | 595 | 93.1 | 0.80 | 1.8 | 0.8 | 6.5 | 73 | 10.2 |
| YL560-10 | 710 | 88.6 | 593 | 94.0 | 0.82 | 1.8 | 0.7 | 6.0 | 107 | 2110 |
| YL560-10 | 800 | 99.7 | 593 | 04.2 | 0.82 | 1.8 | 0.7 | 6.0 | 113 | 2340 |
| YL560-10 | 900 | 112.0 | 593 | 94.3 | 0.82 | 1.8 | 0.7 | 6.0 | 123 | 2598 |
| YL630-10 | 1000 | 124.3 | 594 | 94.4 | 0.82 | 1.8 | 0.7 | 6.0 | 152 | 2856 |
| YL630-10 | 1120 | 138.9 | 594 | 94.6 | 0.82 | 1.8 | 0.7 | 6.0 | 102 | 3155 |
| YL630-10 | 1250 | 154.7 | 594 | 94.8 | 0.82 | 1.8 | 0.7 | 6.0 | 177 | 3473 |
| YL630-10 | 1400 | 173.1 | 594 | 94.9 | 0.82 | 1.8 | 0.7 | 6.0 | 194 | 3832 |
| YL450-12 | 185 | 27.2 | 494 | 90.9 | 0.72 | 1.8 | 0.8 | 5.5 | 38 | 938 |
| YL450-12 | 200 | 29.3 | 494 | 91.1 | 0.72 | 1.8 | 0.8 | 5.5 | 40 | 1028 |
| YL450-12 | 220 | 31.7 | 494 | 91.4 | 0.73 | 1.8 | 0.8 | 5.5 | 42 | 1127 |
| YL450-12 | 250 | 35.9 | 494 | 91.7 | 0.73 | 1.8 | 0.8 | 5.5 | 44 | 1236 |
| YL500-12 | 280 | 39.3 | 493 | 92.7 | 0.74 | 1.8 | 0.8 | 5.5 | 52 | 1416 |
| YL500-12 | 315 | 43.6 | 493 | 92.0 | 0.75 | 1.8 | 0.8 | 5.5 | 56 | 1575 |
| YL500-12 | 355 | 49.0 | 494 | 93.0 | 0.75 | 1.8 | 0.8 | 5.5 | 61 | 1755 |
| YL500-12 | 400 | 55.0 | 494 | 93.3 | 0.75 | 1.8 | 0.8 | 5.5 | 66 | 1964 |
| YL500-12 | 450 | 61.8 | 495 | 93.4 | 0.75 | 1.8 | 0.8 | 5.5 | 74 | 2184 |
| YL560-12 | 500 | 65.0 | 495 | 93.7 | 0.79 | 1.8 | 0.7 | 8.0 | 104 | 2400 |
| YL560-12 | 560 | 72.7 | 495 | 93.8 | 0.79 | 1.8 | 0.7 | 6.0 | 116 | 2660 |
| YL560-12 | 630 | 81.7 | 495 | 93.0 | 0.79 | 1.8 | 0.7 | 6.0 | 122 | 2960 |
| YL630-12 | 710 | 92.0 | 495 | 94.0 | 0.79 | 1.8 | 0.7 | 6.0 | 174 | 3295 |
| YL630-12 | 800 | 103.4 | 495 | 94.2 | 0.79 | 1.8 | 0.7 | 6.0 | 186 | 3673 |
| YL000-12 | 900 | 116.2 | 495 | 94.3 | 0.79 | 1.8 | 0.7 | 6.0 | 204 | 4000 |
| YL630-12 | 1000 | 129.0 | 495 | 94.4 | 0.79 | 1.8 | 0.7 | 6.0 | 218 | 4530 |
2、YL系列10kV立式异步电动机技术数据(保证值)见 表2
| 型号 | 额定功率(kW) | 额定电流(A) | 额定转速 (r/min) | 效率(%) | 功率因数 cosφ | 最大转矩 额定转矩 Mmax/Mn | 堵转矩/ 额定转矩Mst/Mn | 堵转电流/额定电流 | 转动惯量/J电机 kg. m2 | 转动惯量/J负载 kg.m2 |
| Y450-2 | 355 | 25.1 | 2076 | 93.8 | 0.87 | 1.8 | 0.6 | 7 | 6.05 | 11.4 |
| Y450-2 | 400 | 20.2 | 2978 | 94.1 | 0.87 | 1.8 | 0.6 | 7 | 12.1 | 16.0 |
| Y450-2 | 450 | 31.7 | 2976 | 94.2 | 0.87 | 1.8 | 0.6 | 7 | 12.1 | 18.7 |
| Y450-2 | 500 | 35.2 | 2977 | 94.4 | 0.87 | 1.8 | 0.6 | 7 | 12.65 | 19.0 |
| Y450-2 | 560 | 39.3 | 2977 | 94.5 | 0.87 | 1.8 | 0.6 | 7 | 13.2 | 19.8 |
| Y450-2 | 400 | 44.2 | 2989 | 94.6 | 0.87 | 1.8 | 0.6 | 7 | 20.9 | 20.2 |
| Y500-2 | 710 | 49.2 | 2989 | 94.7 | 0.88 | 1.8 | 0.6 | 7 | 22.0 | 21.0 |
| Y500-2 | 300 | 55.4 | 2987 | 94.8 | 0.88 | 1.8 | 0.6 | 7 | 23.1 | 22.9 |
| Y500-2 | 900 | 62.2 | 2987 | 94.9 | 0.88 | 1.8 | 0.6 | 7 | 24.2 | 24.3 |
| Y500-2 | 1000 | 69.1 | 2985 | 95.0 | 0.88 | 1.8 | 0.6 | 7 | 31.9 | 25.1 |
| Y500-2 | 1120 | 77.2 | 2986 | 95.2 | 0.88 | 1.8 | 0.6 | 7 | 34.1 | 27.9 |
| Y560-2 | 1250 | 85.0 | 2986 | 95.4 | 0.89 | 1.8 | 0.6 | 7 | 37.4 | 32.6 |
| Y560-2 | 1400 | 95.1 | 2988 | 95.5 | 0.89 | 1.8 | 0.6 | 7 | 39.6 | 35.4 |
| Y560-2 | 1600 | 108.6 | 2985 | 95.6 | 0.89 | 1.8 | 0.6 | 7 | 45.1 | 50.9 |
| Y630-2 | 1800 | 120.7 | 2987 | 95.7 | 0.9 | 1.8 | 0.6 | 7 | 50.6 | 54.4 |
| Y630-2 | 2000 | 134.0 | 2985 | 95.8 | 0.9 | 1.8 | 0.6 | 7 | 53.9 | 61.1 |
| Y630-2 | 2240 | 149.7 | 2987 | 96.0 | 0.9 | 1.8 | 0.6 | 7 | 57.2 | 67.8 |
| Y450-4 | 355 | 25.5 | 1486 | 93.3 | 0.86 | 1.8 | 0.7 | 7 | 16.5 | 88.5 |
| Y450-4 | 400 | 28.7 | 1487 | 93.5 | 0.86 | 1.8 | 0.7 | 7 | 16.5 | 93.5 |
| Y450-4 | 450 | 32.2 | 1485 | 93.9 | 0.86 | 1.8 | 0.7 | 7 | 17.6 | 103.4 |
| Y450-4 | 500 | 35.7 | 1486 | 94 | 0.86 | 1.8 | 0.7 | 7 | 18.7 | 104.3 |
| Y450-4 | 560 | 39.9 | 1489 | 94.2 | 0.86 | 1.8 | 0.7 | 7 | 27.5 | 117.5 |
| Y450-4 | 630 | 44.8 | 1490 | 94.4 | 1.86 | 1.8 | 0.7 | 7 | 27.5 | 131.5 |
| Y500-4 | 710 | 49.6 | 1490 | 95 | 0.87 | 1.8 | 0.7 | 7 | 30.8 | 139.2 |
| Y500-4 | 800 | 55.8 | 1489 | 95.1 | 0.87 | 1.8 | 0.7 | 7 | 30.8 | 149.2 |
| Y500-4 | 900 | 62.0 | 1489 | 95.2 | 0.88 | 1.8 | 0.7 | 7 | 33 | 172.0 |
| Y500-4 | 1000 | 68.8 | 1489 | 95.3 | 0.88 | 1.8 | 0.7 | 7 | 47.3 | 185.7 |
| Y500-4 | 1120 | 77.0 | 1490 | 95.4 | 0.88 | 1.8 | 0.7 | 7 | 50.6 | 210.4 |
| Y560-4 | 1250 | 84.9 | 1489 | 95.5 | 0.88 | 1.8 | 0.7 | 7 | 50.6 | 250.4 |
| Y560-4 | 1400 | 94.9 | 1490 | 95.7 | 0.89 | 1.8 | 0.7 | 7 | 59.4 | 279.6 |
| Y560-4 | 1600 | 108.3 | 1493 | 95.8 | 0.89 | 1.8 | 0.7 | 7 | 97.9 | 331.1 |
| Y630-4 | 1800 | 121.8 | 1492 | 95.9 | 0.89 | 1.8 | 0.6 | 7 | 97.9 | 376.1 |
| Y630-4 | 2000 | 135.2 | 1493 | 96.0 | 0.89 | 1.8 | 0.6 | 7 | 103.4 | 420.6 |
| Y630-4 | 2240 | 151.2 | 1493 | 96.1 | 0.89 | 1.8 | 0.6 | 7 | 114.4 | 449.6 |
| Y450-6 | 315 | 23.9 | 991 | 92.8 | 0.82 | 1.8 | 0.7 | 6 | 24.2 | 236.8 |
| Y450-6 | 355 | 26.5 | 991 | 93.1 | 0.83 | 1.8 | 0.7 | 6 | 37.4 | 241.6 |
| Y450-6 | 400 | 29.8 | 991 | 93.3 | 0.83 | 1.8 | 0.7 | 6 | 40.7 | 276.3 |
| Y450-6 | 450 | 33.5 | 902 | 93.6 | 0.83 | 1.8 | 0.7 | 6 | 44 | 325.0 |
| Y500-6 | 500 | 37.0 | 990 | 93.9 | 0.83 | 1.8 | 0.7 | 6 | 44 | 295.0 |
| Y500-6 | 560 | 40.9 | 991 | 94.1 | 0.84 | 1.8 | 0.7 | 6 | 47.3 | 326.7 |
| Y500-6 | 630 | 45.9 | 991 | 94.4 | 0.84 | 1.8 | 0.7 | 6 | 50.6 | 370.4 |
| Y500-6 | 710 | 51.6 | 993 | 94.6 | 0.84 | 1.8 | 0.7 | 6 | 64.9 | 414.1 |
| Y500-6 | 800 | 58.4 | 993 | 94.7 | 0.84 | 1.8 | 0.7 | 6 | 75.9 | 453.1 |
| Y560-6 | 900 | 54.4 | 994 | 94.9 | 0.85 | 1.8 | 0.7 | 6 | 80.3 | 492.7 |
| Y560-6 | 1000 | 71.4 | 993 | 95.1 | 0.85 | 1.5 | 0.7 | 6 | 80.3 | 532.7 |
| Y560-6 | 1120 | 79.8 | 995 | 95.3 | 0.85 | 1.8 | 0.7 | 6 | 113.3 | 570.7 |
| V560-6 | 1250 | 88.0 | 995 | 95.4 | 0.86 | 1.8 | 0.7 | 6 | 124.3 | 610.7 |
| Y630-6 | 1400 | 98.2 | 995 | 95.7 | 0.86 | 1.8 | 0.6 | 6 | 133.1 | 680.9 |
| Y600-6 | 1600 | 112.1 | 995 | 95.8 | 0.86 | 1.8 | 0.6 | 6 | 147.4 | 967.6 |
| Y630-6 | 1800 | 126.0 | 995 | 95.9 | 0.86 | 1.8 | 0.6 | 6 | 154.6 | 1085.9 |
| Y500-8 | 315 | 25.5 | 739 | 92.8 | 0.77 | 1.8 | 0.7 | 6 | 47.3 | 411.7 |
| Y500-8 | 355 | 28.6 | 739 | 93.1 | 0.77 | 1.8 | 0.7 | 6 | 49.5 | 440.5 |
| Y500-8 | 400 | 31.8 | 738 | 93.2 | 0.78 | 1.8 | 0.7 | 6 | 49.5 | 475.5 |
| Y500-8 | 450 | 35.7 | 738 | 93.4 | 0.78 | 1.8 | 0.7 | 6 | 55 | 505 |
| Y500-8 | 500 | 39.0 | 739 | 93.8 | 0.79 | 1.8 | 0.7 | 6 | 58.3 | 534.7 |
| Y500-8 | 560 | 43.6 | 744 | 93.9 | 0.79 | 1.8 | 0.7 | 6 | 85.8 | 552.2 |
| Y560-8 | 630 | 47.0 | 743 | 94.4 | 0.82 | 1.8 | 0.7 | 6 | 91.3 | 611.7 |
| Y560-8 | 710 | 52.8 | 743 | 94.6 | 0.82 | 1.8 | 0.7 | 6 | 99 | 701 |
| Y560-8 | 800 | 59.5 | 744 | 94.7 | 0.82 | 1.8 | 0.7 | 6 | 99 | 791 |
| Y560-8 | 900 | 66.8 | 744 | 94.8 | 0.82 | 1.8 | 0.7 | 6 | 141.9 | 856.1 |
| Y630-8 | 1000 | 73.2 | 744 | 95.0 | 0.83 | 1.8 | 0.7 | 6 | 155.1 | 960.9 |
| Y630-8 | 1120 | 81.8 | 744 | 95.2 | 0.83 | 1.8 | 0.7 | 6 | 177.1 | 1063.9 |
| Y63048 | 1250 | 91.2 | 745 | 95.3 | 0.83 | 1.8 | 0.7 | 6 | 192.5 | 1192.5 |
| Y500-10 | 280 | 23.6 | 590 | 92.4 | 0.74 | 1.8 | 0.7 | 6 | 53.9 | 993.1 |
| Y500-10 | 315 | 26.5 | 590 | 92.6 | 0.74 | 1.8 | 0.7 | 5.5 | 57.2 | 1134.8 |
| Y500-10 | 355 | 29.4 | 590 | 92.8 | 0.75 | 1.8 | 0.7 | 5.5 | 57 | 1224.8 |
| Y500-10 | 400 | 33.1 | 590 | 93.0 | 0.75 | 1.8 | 0.7 | 5.5 | 63.8 | 1284.2 |
| Y560-10 | 450 | 36.2 | 590 | 93.2 | 0.77 | 1.8 | 0.7 | 6 | 67.1 | 1333.9 |
| Y560-10 | 500 | 40.1 | 593 | 93.4 | 0.77 | 1.8 | 0.7 | 6 | 107.8 | 1360.2 |
| Y560-10 | 560 | 44.3 | 592 | 93.5 | 0.78 | 1.8 | 0.7 | 6 | 107.8 | 1410.2 |
| Y560-10 | 630 | 49.8 | 593 | 93.7 | 0.78 | 1.8 | 0.7 | 6 | 117.7 | 1499.3 |
| Y560-10 | 710 | 56.0 | 593 | 93.9 | 0.78 | 1.8 | 0.7 | 6 | 130.9 | 1658.1 |
| Y630-10 | 800 | 61.2 | 594 | 94.3 | 0.8 | 1.8 | 0.7 | 6 | 184.8 | 2063.2 |
| Y630-10 | 900 | 68.7 | 595 | 94.5 | 0.8 | 1.8 | 0.7 | 9 | 194.7 | 2362.3 |
| 7630-10 | 1000 | 76.3 | 593 | 94.0 | 0.8 | 1.8 | 0.7 | 6 | 212.3 | 2420.7 |
| Y630-10 | 1120 | 85.4 | 593 | 94.7 | 0.8 | 1.8 | 0.7 | 6 | 224.4 | 2389.6 |
| Y560-12 | 315 | 27.0 | 494 | 92.3 | 0.73 | 1.8 | 0.7 | 6 | 104.5 | 1000.5 |
| 7560-12 | 355 | 30.4 | 494 | 92.5 | 0.73 | 1.8 | 0.7 | 6 | 114.4 | 1179.6 |
| Y560-12 | 400 | 34.1 | 494 | 92.7 | 0.73 | 1.8 | 0.7 | 6 | 121.0 | 1279.0 |
| Y560-12 | 450 | 38.3 | 494 | 92.9 | 0.73 | 1.8 | 0.7 | 6 | 133.1 | 1407.9 |
| Y560-12 | 500 | 42.4 | 493 | 93.2 | 0.73 | 1.8 | 0.7 | 6 | 133.1 | 1657.8 |
| Y630-12 | 560 | 46.7 | 492 | 93.5 | 0.74 | 1.8 | 0.7 | 6 | 183.7 | 2073.3 |
| Y630-12 | 650 | 52.5 | 493 | 93.7 | 0.74 | 1.8 | 0.7 | 6 | 201.3 | 2921.7 |
| Y630-12 | 710 | 59.0 | 493 | 93.9 | 0.74 | 1.8 | 0.7 | 6 | 215.6 | 3130.4 |
| Y630-12 | 300 | 66.2 | 492 | 94.4 | 0.74 | 1.8 | 0.7 | 6 | 227.7 | 3199.3 |
